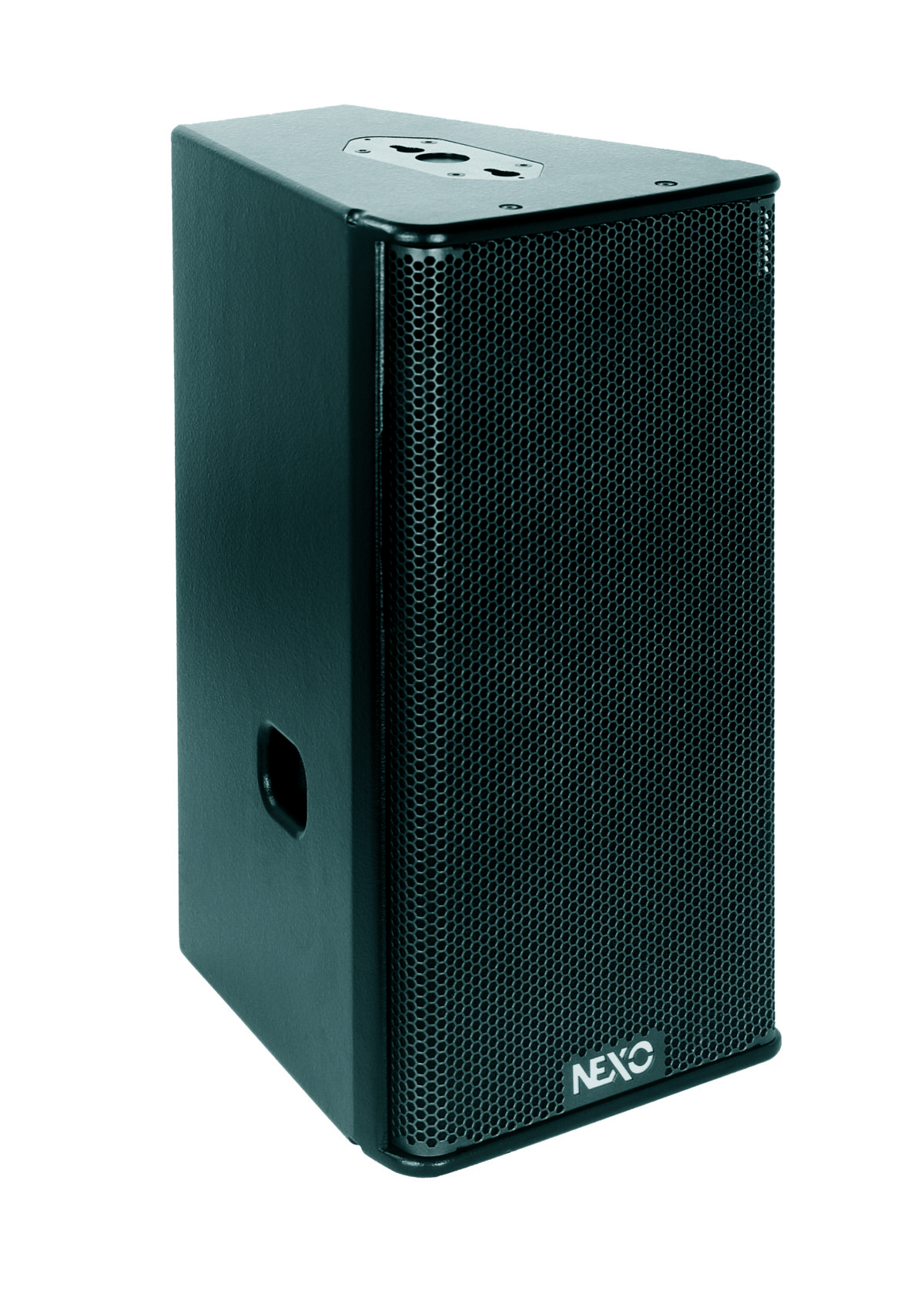

GEO S1230-ST

NEXO’s compact, 2-way GEO S1230-ST is a high-output, long throw version of the standard GEO S1230 cabinet, designed for stadium installations. While a narrow-Q (30°) device in single-source mode, S1230-ST’s unique Hyperboloid Reflective Wavesource (HRW) also allows coupled S1230-STs to radiate as coherent, wavefronts, in either horizontally or vertically arrayed systems. GEO S1230-ST’s coupled MF/HF pattern control is array-dependent, as designed by NS-1 array software, and configured according to venue -specific geometry. Non- coupled MF/HF coverage configures at 80°or 120°.The S1230-ST module displays exceptional MF-LF output (105dB SPL nominal sensitivity -1W @1m) from a single 12″ loudspeaker and NEXO’s proprietary Directivity Phase Device (DPD).

Key Features

  • High SPL for long-throw applications
  • Enhanced speech intelligibility
  • Coherent Wave Propagation from NEXO’s Advanced GEO Hyperbolic Wavesource
  • Advanced Constant Velocity Profile Output from 28.5° Wavefront Curvature
  • NS-1 Configurable, EtherSound™ (Network)

Specifications

Frequency response [a]53Hz – 19kHz ±3dB
Usable range @-6dB [a]50Hz – 20kHz
Sensitivity 1W @ 1m [b]105dB SPL nominal
Peak SPL @ 1m [b]133 to 135dB Peak (for 500 to 900 W RMS Amplifier)
Dispersion [c]Coupling Plane: 28.5° Non-Coupling Plane: Configurable 80° / 120°
Crossover frequencyLF- HF: 1.1kHz Passive or Active (internally configurable
Nominal impedanceHF: 16Ω; LF: 16Ω
Recommended amplifiers
3x GEO S1230-ST in parallelHF: 875 to 1550W into 4Ω, LF: 1750 to 3100W into 4Ω
4x GEO S1230-ST in parallelHF: 1000 to 1800W into 4Ω, LF: 2000 to 3600W into 4Ω-ST
6x GEO S1230 in parallelHF: 1650 to 3000W into 2Ω, LF: 3300 to 6000W into 2Ω

Features

ComponentsHF: 1 x 3” voice coil, 1.4” throat 16Ω ND driver on a 5° hyperboloid reflective wavesource
LF: 1 x 12” (30cm) high excursion neodymium 16Ω driver
344 x 675 x 400 mm (13 1/2” x 26 1/2” x 15 1/2”) excluding accessories
Height x Width x Depth344 x 675 x 400 mm (13 1/2” x 26 1/2” x 15 1/2”) excluding accessories
Rigging axis to axis height: 345mm (13 1/2”)
Shape30° Trapezoid
Weight net26.8kg (59.1lbs) excluding accessories
Connectors2x NL4MP SPEAKON 4-pole (In & Through)
ConstructionBaltic Birch ply with structured black coating
Front finishMolded dark grey metal grille
Flying pointsTwo plates connecting with external accessories
Intercabinet angle adjustments = (16°) - 22.5° - 30°
