A point source powerhouse

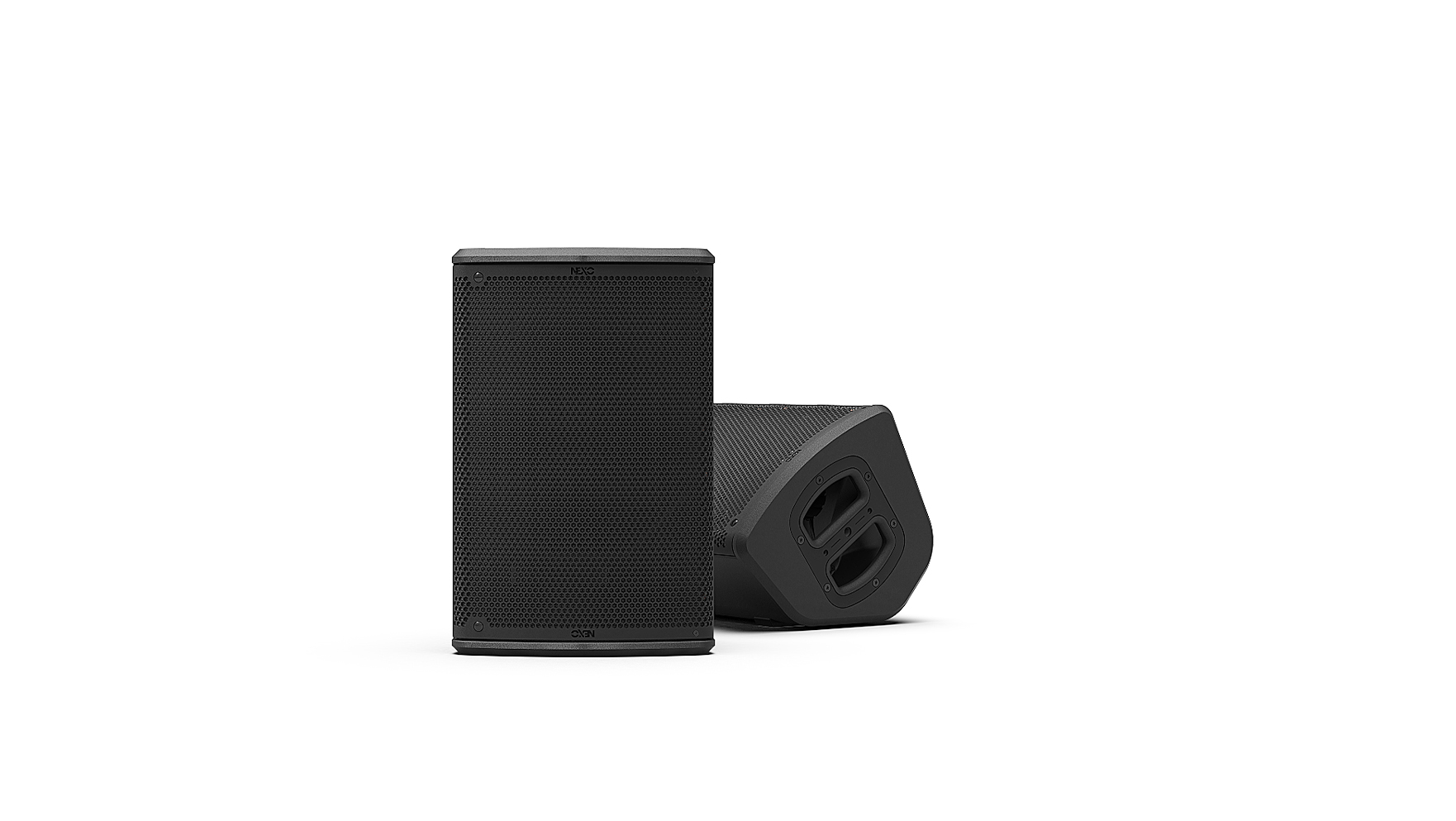

P8

Measuring 276mm wide x 423mm high x 250mm deep and weighing 12Kg, the P8 can be deployed in vertical or horizontal (wedge monitor) configurations, with HF directivity set to match the specific application. Speakon connectors are located in the side-mounting handles and the back plate (Touring version only). Installation versions are available in custom RAL colours and feature a fixed cloth-covered grille, universal rigging points on the sides and bottom of the cabinet and 2-core cable for audio input to ensure IP54 protection index. TIS versions feature touring handles and connectivity, with cloth-covered grilles. The P8 is passive only.

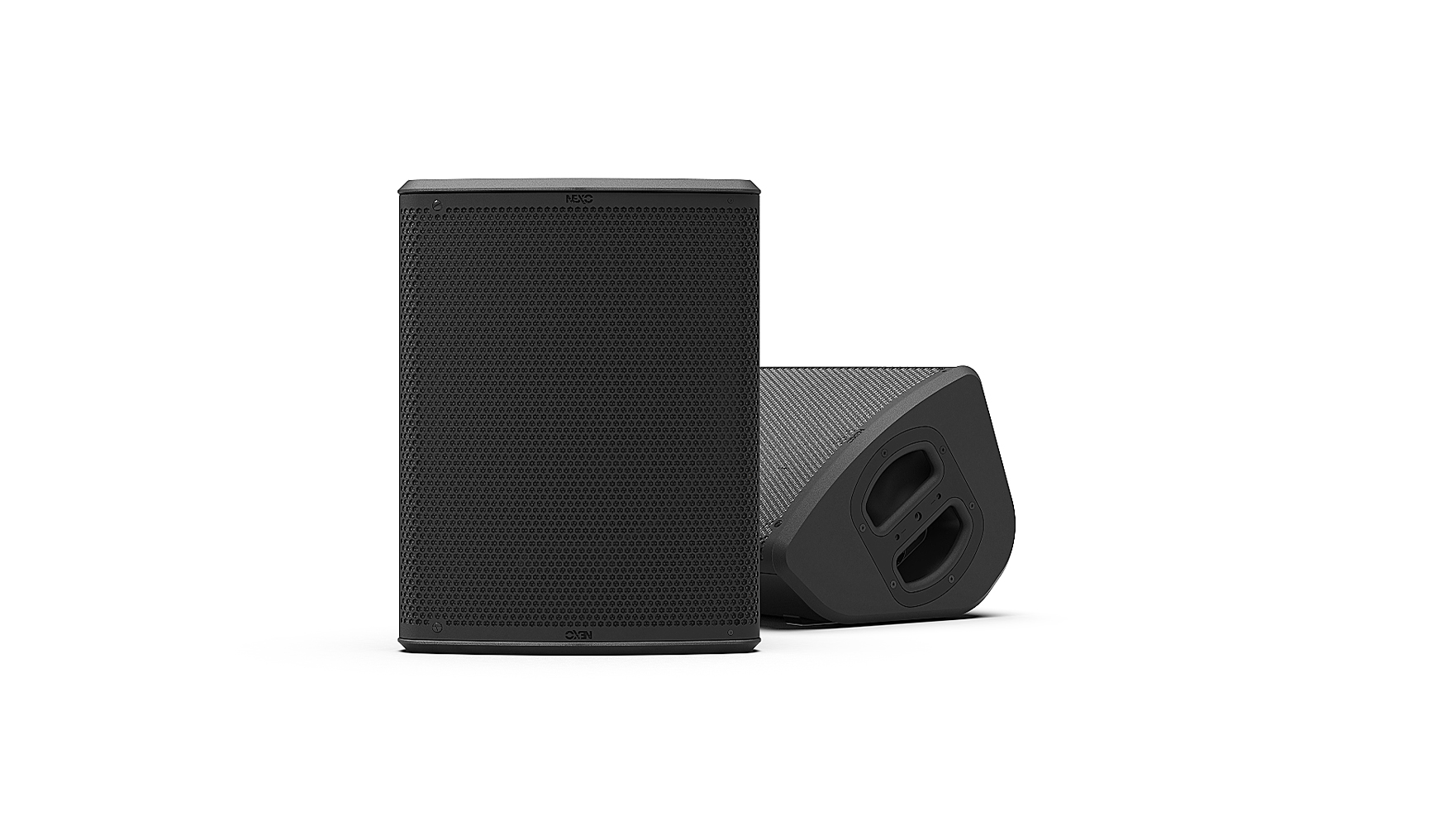

P10

Measuring 384mm wide x 497mm high x 274mm deep and weighing 15Kg, the P10 can be deployed in vertical or horizontal (wedge monitor) configurations, with HF directivity set to match the specific application. Speakon connectors are located in the side-mounting handles and the back plate (Touring version only). Installation versions are available in custom RAL colours and feature a fixed cloth-covered grille, universal rigging points on the sides and bottom of the cabinet and 2-core cable for audio input to ensure IP54 protection index. TIS versions feature touring handles and connectivity, with cloth-covered grilles. The P10 is passive only.

P12

Housed in a curvilinear enclosure of custom birch and poplar plywood, the P12 employs a purpose-designed 12″ LF Neodymium driver and 3″ diaphragm HF driver in a coaxial configuration.  The compact cabinet measures just 534mm x 432mm x 314mm, and can be deployed in vertical or horizontal (wedge monitor) configurations, with HF directivity set to match the specific application. The back plate holds two Speakon® connectors (plus one each on both sides) and a recessed switch to change the cabinet from 2-way passive to 2-way active mode. Installation versions are available in custom RAL colours and feature a fixed cloth-covered grille,…

P15

Housed in a curvilinear enclosure of custom birch and poplar plywood, the P15 employs a purpose-designed 15″ LF Neodymium driver and 3″ diaphragm HF driver in a coaxial configuration.  The compact cabinet measures just 600mm x 483mm x 352mm, and can be deployed in vertical or horizontal (wedge monitor) configurations, with HF directivity set to match the specific application. The back plate holds two Speakon® connectors (plus one each on both sides) and a recessed switch to change the cabinet from 2-way passive to 2-way active mode. Installation versions are available in custom RAL colours and feature a fixed cloth-covered…

P18

Housed in a curvilinear enclosure of custom birch and poplar plywood, the P18 employs a purpose-designed 18″ LF Neodymium driver and 4″ diaphragm HF driver in a coaxial configuration.  The compact cabinet measures just 680mm x 579mm x 446mm, and can be deployed in vertical or horizontal (wedge monitor) configurations, with HF directivity set to match the specific application. The back plate holds two Speakon® connectors (plus one each on both sides) and a recessed switch to change the cabinet from 2-way passive to 2-way active mode. Installation versions are available in custom RAL colours (Passive only) and feature a…

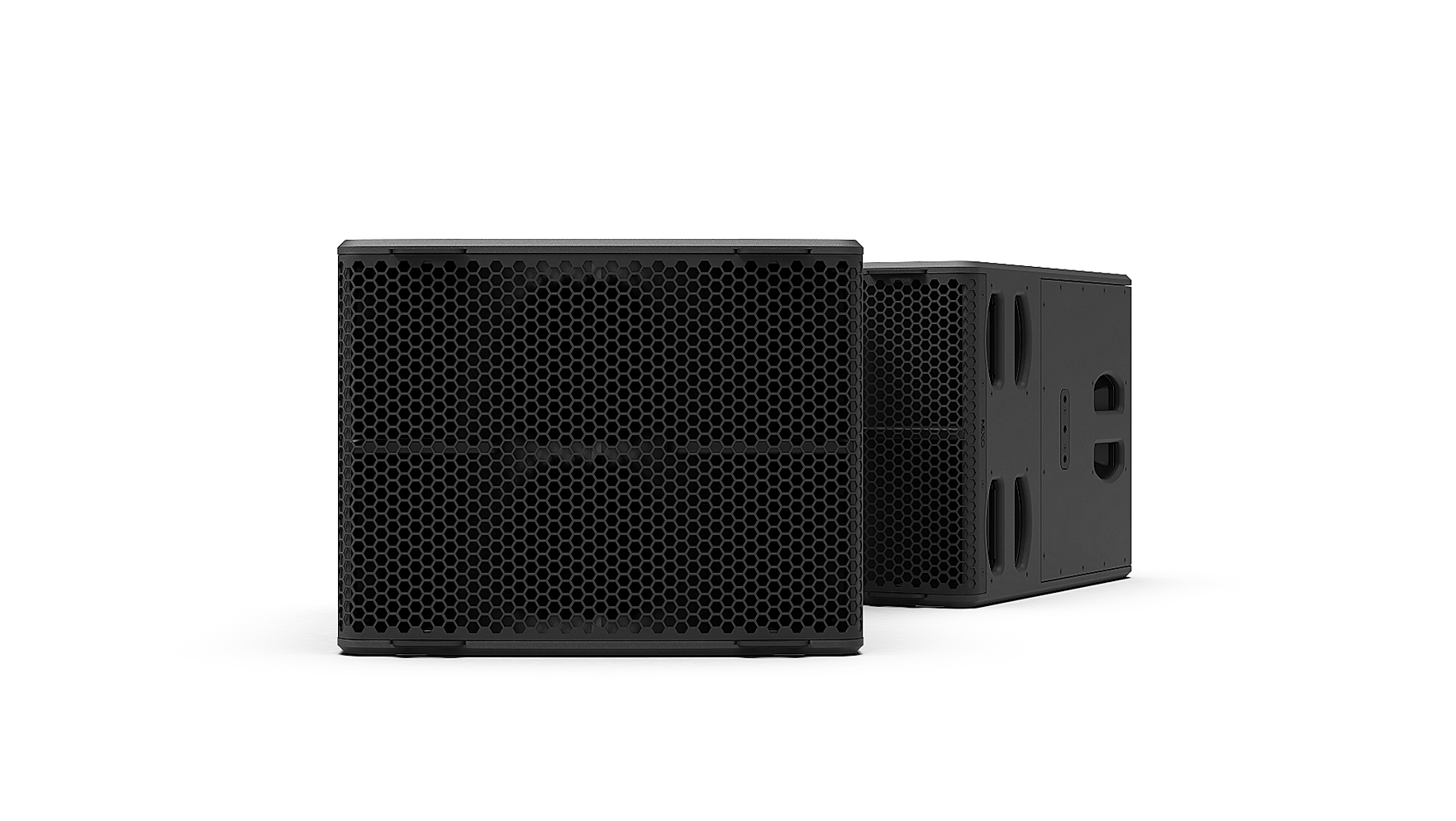

L15

Measuring 550mm wide x 439mm high x 650mm deep and weighing 35Kg, the L15 sub employs a 15" long excursion driver in Baltic birch / poplar plywood cabinet with threaded inserts for mounting accessories and an M20 stand fitting. With a frequency range of 40Hz-120Hz, and 139dB Peak SPL, The L15 is specially designed in a footprint to match the P12, making it a perfect partner in flown applications, and for use as a drum fill.

L15-I

Measuring 550mm wide x 439mm high x 650mm deep, the installation version of the L15 sub employs a 15″ long excursion driver in Baltic birch / poplar plywood cabinet with a fabric covered grille and threaded inserts for mounting accessories, and quick-connect push connector. With a frequency range of 40Hz-120Hz, and 139dB Peak SPL, the L15 is perfect for extending the low frequency response of P+ Series installations.

P-Series-modules-L18-2

L18

Measuring 680mm wide x 559mm high x 775mm deep and weighing 50Kg, the L18 sub employs a 18″ long excursion driver in Baltic birch / poplar plywood cabinet with threaded inserts for mounting accessories and an M20 stand fitting. With a frequency range of 32Hz-120Hz, and 140dB Peak SPL, The L18 is specially designed in a footprint to match the P15, making it a perfect partner in flown applications, and for use as a drum fill.

L18-I

Measuring 680mm wide x 559mm high x 775mm deep, the installation version of the L18 sub employs a 18″ long excursion driver in Baltic birch / poplar plywood cabinet with a fabric covered grille and threaded inserts for mounting accessories, and quick-connect push connector. With a frequency range of 32Hz-120Hz, and 140dB Peak SPL, the L18-I is perfect for extending the low frequency response of P+ Series installations.

L20

Measuring 755mm wide x 594mm high x 905mm deep and weighing 59Kg, the L20 sub employs a 20″ long excursion driver in Baltic birch / poplar plywood cabinet with threaded inserts for mounting accessories and an M20 stand fitting.

L20-I

Measuring 755mm wide x 594mm high x 905mm deep, the installation version of the L20 sub employs a 20″ long excursion driver in Baltic birch / poplar plywood cabinet with a fabric covered grille and threaded inserts for mounting accessories, and quick-connect push connector. With a frequency range of 28Hz-120Hz, and 141dB Peak SPL, The L20-I is perfect for extending the low frequency response of P+ Series installations.
