Cost-efficient power and processing
for NEXO installed systems

nanoNXAMP4

A compact, lower-powered, combined amplification and processing solution that significantly reduces the cost of NEXO ID and ePS Series sound systems for retail, hospitality, houses of worship and corporate installations.

Scalable, flexible, cost-efficient

Available in standard and Dante-equipped versions, the 4-channel nanoNXAMP4 combined amplification and processing solution significantly reduces the cost of NEXO sound systems for retail, hospitality, houses of worship and corporate installations, without compromising the sound quality.

Trademark NEXO sound quality

Compact yet feature-packed, ultra-low distortion and highly reliable Class D amplification delivers 4 x 250W, providing the same acclaimed sound quality and sonic signature as NEXO’s larger NXAMPMK2 TD Controllers. Processing uses FIR filtering for precise system EQ and linear phase compatibility, with presets available for an edited range of speakers drawn exclusively from NEXO’s popular ID and ePS Series.

Adaptable, controllable

On-board mixer and matrix functions further reduce the overall cost of smaller installations and wall remote controls are available and can be configured to allow users to select sources and control volume.

A web-based GUI for system design and set up

Set up and remote control is enabled by an embedded web page that can be accessed via Ethernet or Wi-Fi. Intuitive control is provided over a wide range of parameters including Inputs, Areas, Output Routing, NEXO Speaker Processing Presets, Delays and System Information.

Ready for external control

The nanoNXAMP4 is compatible with NEXO’s NeMo remote control and monitoring tools for networked NEXO Powered TD Controllers, and industry-standard third party remote control protocols.

Save space

The nanoNXAMP4 occupies just half a rack width and 1U height, increasing channel density. The integrated DSP offers a true 4x In / 4x Out architecture with optional Dante connectivity, all without the need of external processing, leading to significant space-savings over existing NEXO amplifier solutions while also saving cost and reducing cabling.

Save energy

The nanoNXAMP4 doesn’t just save money and rack space, it also saves energy, with a sophisticated series of intelligent standby modes helping to achieve a class-leading Energy Star rating.

Key features and specifications

Click here for key features and detailed specifications of standard and Dante-equipped versions of the nanoNXAMP4.

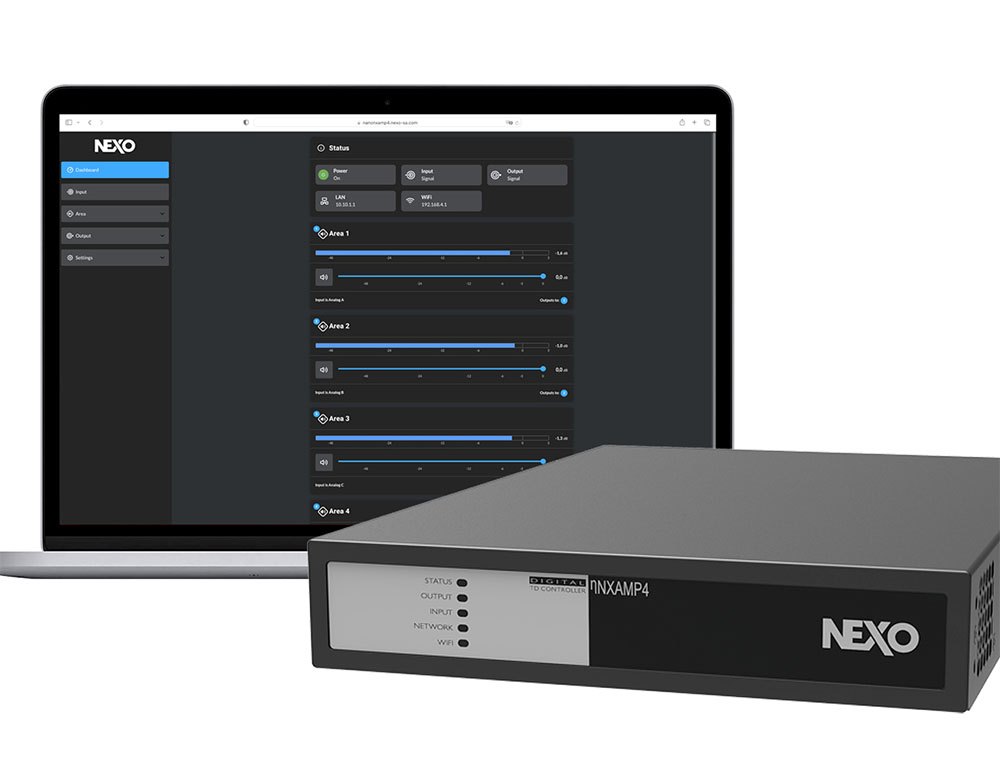

nanoNXAMP4 simulator

nanoNXAMP4 simulator

Retail applications: nanoNXAMP4 + ID14-I

Available in black, white and custom RAL colours, NEXO’s ultra-compact ID14-I blends seamlessly into prestigious retail environments, delivering dynamic, full range sound with bass extension from an equally compact 8-inch sub.

Up to 2 x ID14-I can be powered by each channel of the nanoNXAMP, with 2 channels to power the subs. Input sources connect directly to the amplifier and can be selected with the wall-mounting remote, which also controls volume.

Discover the ID14-I

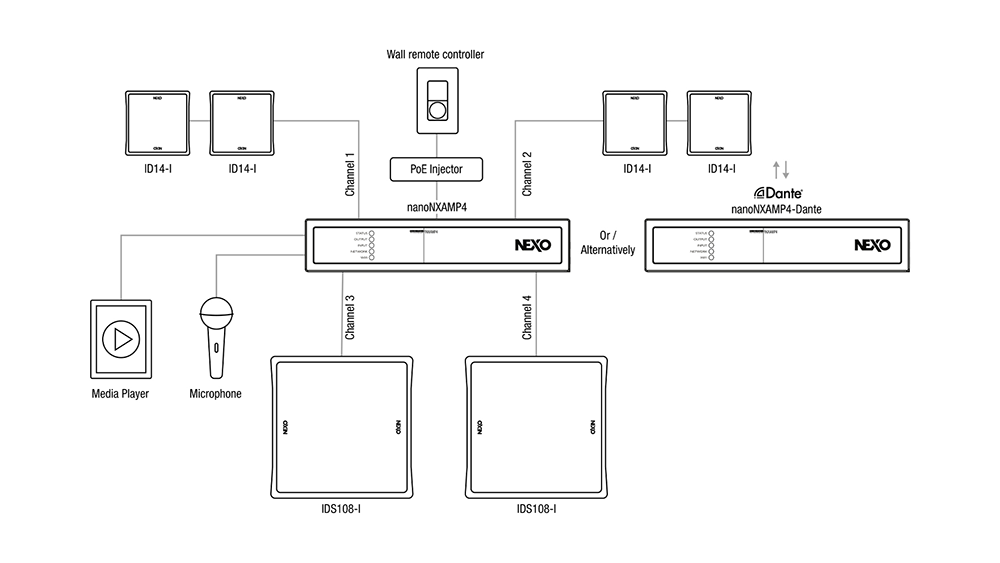

Suggested Retail System

nanoNXAMP4 with NEXO ID14-Is and IDS108-I subs. Wall remote control of media player and microphone sources.

Restaurant applications: nanoNXAMP4 + ID24-I

Also available in black, white and custom RAL colours, and using an innovative V-formation of drivers, the ID24-I features a unique, rotatable horn which can be easily accessed by the system designer to ensure seamless coverage of dining, bar and reception spaces.

Up to 2 x ID24-I can be powered by each channel of the nanoNXAMP. Input sources connect directly to the amplifier and can be selected with wall-mounting remotes, which also control volume.

Discover the ID24-I

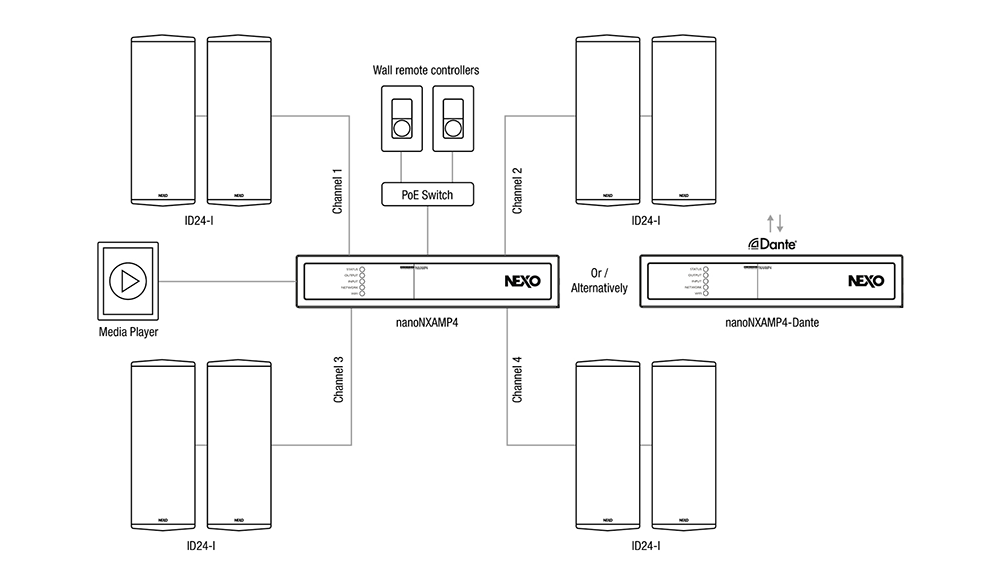

Suggested restaurant system

nanoNXAMP4 with NEXO ID24-Is in different zones. Independent wall remote control of media player source.

Bar applications: nanoNXAMP4 + ePS8

The ePS builds on NEXO’s industry-standard PS platform to create a ‘no frills’ range of point source installation loudspeakers, perfect for use in bars on everything from ambient music to DJ sets.

1 x ePS8 can be powered by each channel of the nanoNXAMP, with 2 channels bridged to power the eLS400 subs. Input sources connect directly to the amplifier and can be selected with the wall-mounting remote, which also controls volume.

Discover the ePS8

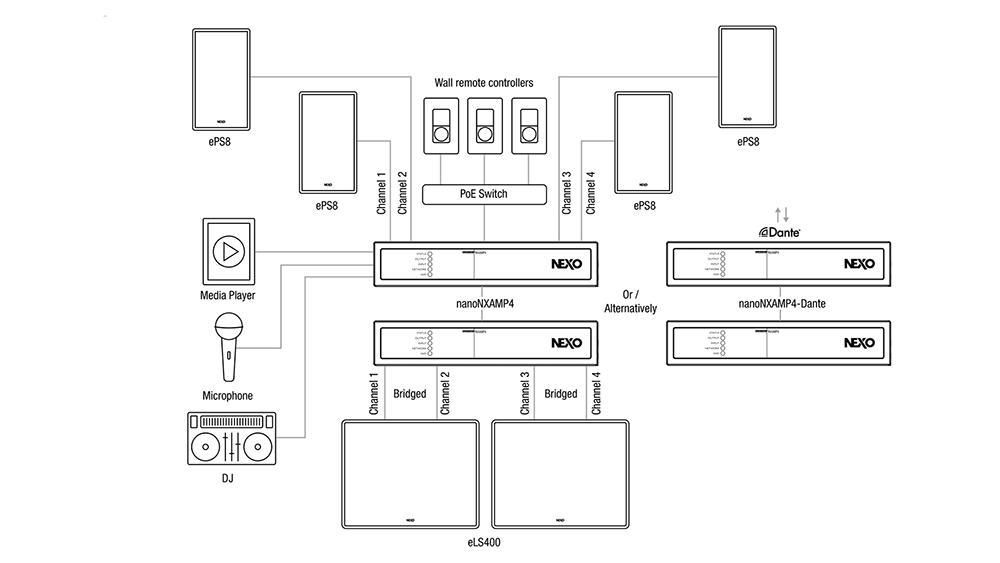

Suggested bar system

nanoNXAMP4 with NEXO ePS8 and eLS400 subs in different zones. Independent wall remote control of media player, DJ and microphone sources.

Worship applications: nanoNXAMP4 + ID84-I

Available in black, white and custom RAL colours, the ID84-I uses eight 4-inch drivers and an array of dome tweeters on a curved baffle to deliver a ‘hi-fi’ performance that has come to redefine the column loudspeaker.

A popular choice in Houses of Worship where a line array might be impractical, one ID84-I can be powered by each channel of the nanoNXAMP, with additional channels required for the similarly proportioned ID84-L-I LF extension modules.

Discover the ID84-I

Suggested Worship System

nanoNXAMP4D with NEXO ID84 columns and mixing console.

NeMo System Management

Available for Windows, macOS and iOS, NeMo system management software allows users to control one or more NEXO devices (NXAMPMk2 Powered TD-controllers, DTD Digital TD-controllers and, coming soon, nanoNXAMP4/4D) from a tablet or smartphone through a Wi-Fi network, and from a desktop computer through a wired or Wi-Fi network. Managing and positioning devices, monitoring their parameters (levels, etc.), and setting new values (preset, volume, delay, EQ, etc.) is made possible via an attractive and intuitive user interface. NEXO NeMo also includes a powerful engine for logging and alerting.

More

Docs and Downloads

Get the brochure, datasheets, etc.

More
