Focus. Fidelity. Flexibility.
GEO S12
GEO S12 comprises S1210 (with shallow tapering to the cabinet rear) and S1230 modules (with steeper tapering, allowing for larger array angles), each available in special ‘ST’ long-throw versions for deployment in sports arenas.
GEO S1210
The compact, 2-way GEO S1210 is a scalable loudspeaker module that displays exceptional MF-LF output (103dB SPL nominal sensitivity -1W @1m) from a single12” loudspeaker and NEXO’s proprietary Directivity Phase Device (DPD). A very narrow-Q (10°) device in single-source mode, S1210’s unique Hyperboloid Reflective Wavesource (HRW) allows coupled S1210/1230s to radiate as coherent, wavefronts, yeilding precise pattern control in vertical or horizontal arrays. S12 arrays display traditional "tight-pack" pattern control in the non-coupled plane.
GEO S1210-ST
NEXO’s compact, 2-way GEO S1210-ST is a high-output, long throw version of the standard GEO S1210 cabinet, designed for stadium installations. While a narrow-Q (10°) device in single-source mode, S1210-ST’s unique Hyperboloid Reflective Wavesource (HRW) also allows coupled S1210-STs to radiate as coherent, wavefronts, in either horizontally or vertically arrayed systems. GEO S1210-ST’s coupled MF/HF pattern control is array-dependent, as designed by NS-1 array software, and configured according to venue -specific geometry. Non- coupled MF/HF coverage configures at 80°or 120°. The S1210-ST module displays exceptional MF-LF output (105dB SPL nominal sensitivity -1W @1m) from a single 12" loudspeaker and NEXO’s…
GEOS1210-EN54
Version of the standard GEOS1210 certified as complying with the EN 54 standards for voice alarm systems. The compact, 2-way GEO S1210-EN54 is a scalable loudspeaker module that displays exceptional MF-LF output (103dB SPL nominal sensitivity -1W @1m) from a single12” loudspeaker and NEXO’s proprietary Directivity Phase Device (DPD). A very narrow-Q (10°) device in single-source mode, S1210’s unique Hyperboloid Reflective Wavesource (HRW) allows coupled S1210/1230s to radiate as coherent, wavefronts, yielding precise pattern control in vertical or horizontal arrays. S12 arrays display traditional “tight-pack” pattern control in the non-coupled plane.
GEOS1210ST-EN54
Version of the standard GEOS1210-ST certified as complying with the EN 54 standards for voice alarm systems. NEXO’s compact, 2-way GEO S1210-ST is a high-output, long throw version of the standard GEO S1210 cabinet, designed for stadium installations. While a narrow-Q (10°) device in single-source mode, S1210-ST’s unique Hyperboloid Reflective Wavesource (HRW) also allows coupled S1210-STs to radiate as coherent, wavefronts, in either horizontally or vertically arrayed systems. GEO S1210-ST’s coupled MF/HF pattern control is array-dependent, as designed by NS-1 array software, and configured according to venue -specific geometry. Non- coupled MF/HF coverage configures at 80°or 120°. The S1210-ST module…

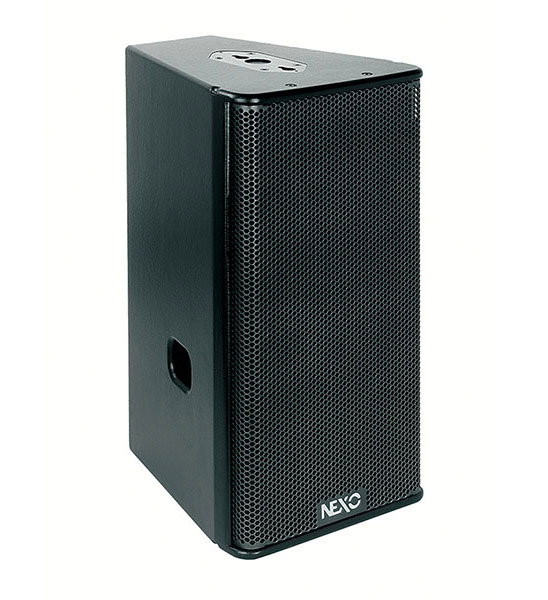

GEO S1230
The compact, 2-way GEO S1230 is a scalable loudspeaker module that displays exceptional MF-LF output (103dB SPL nominal sensitivity -1W @1m) from a single12” loudspeaker and NEXO’s proprietary Directivity Phase Device (DPD). A narrow-Q (30°) device in single-source mode, S1230’s unique Hyperboloid Reflective Wavesource (HRW) allows coupled S1210/1230s to radiate as coherent, wavefronts, yeilding precise pattern control in vertical or horizontal arrays. S12 arrays display traditional "tight-pack" pattern control in the non-coupled plane.
GEO S1230-ST
NEXO’s compact, 2-way GEO S1230-ST is a high-output, long throw version of the standard GEO S1230 cabinet, designed for stadium installations. While a narrow-Q (30°) device in single-source mode, S1230-ST’s unique Hyperboloid Reflective Wavesource (HRW) also allows coupled S1230-STs to radiate as coherent, wavefronts, in either horizontally or vertically arrayed systems. GEO S1230-ST’s coupled MF/HF pattern control is array-dependent, as designed by NS-1 array software, and configured according to venue -specific geometry. Non- coupled MF/HF coverage configures at 80°or 120°.The S1230-ST module displays exceptional MF-LF output (105dB SPL nominal sensitivity -1W @1m) from a single 12" loudspeaker and NEXO’s proprietary…
GEOS1230-EN54
Version of the standard GEOS1230 certified as complying with the EN 54 standards for voice alarm systems. The compact, 2-way GEO S1230 is a scalable loudspeaker module that displays exceptional MF-LF output (103dB SPL nominal sensitivity -1W @1m) from a single12” loudspeaker and NEXO’s proprietary Directivity Phase Device (DPD). A narrow-Q (30°) device in single-source mode, S1230’s unique Hyperboloid Reflective Wavesource (HRW) allows coupled S1210/1230s to radiate as coherent, wavefronts, yeilding precise pattern control in vertical or horizontal arrays. S12 arrays display traditional “tight-pack” pattern control in the non-coupled plane.

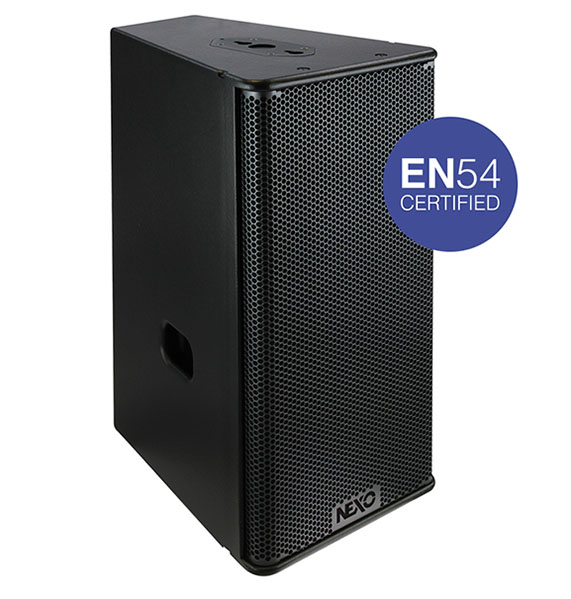

GEOS1230ST-EN54
Version of the standard GEOS1230-ST certified as complying with the EN 54 standards for voice alarm systems. NEXO’s compact, 2-way GEO S1230-ST is a high-output, long throw version of the standard GEO S1230 cabinet, designed for stadium installations. While a narrow-Q (30°) device in single-source mode, S1230-ST’s unique Hyperboloid Reflective Wavesource (HRW) also allows coupled S1230-STs to radiate as coherent, wavefronts, in either horizontally or vertically arrayed systems. GEO S1230-ST’s coupled MF/HF pattern control is array-dependent, as designed by NS-1 array software, and configured according to venue -specific geometry. Non- coupled MF/HF coverage configures at 80°or 120°.The S1230-ST module displays…
