Precision sound, right where it's needed
ID Series
Measuring just 309mm wide, 132mm high and 233mm front to back, the ID24 compact full range speaker uses twin 4 inch drivers in a V formation plus an HF compression driver with rotatable horn. The super compact ID14 measures 130mm wide, 130mm high and 120mm front to back, and uses a single coaxial 4 inch driver with 1.4-inch Neodymium HF. The ID84 column measures 150mm wide x 215mm deep x the standard 1m high and uses eight 4 inch drivers and an array of dome tweeters on a curved baffle. Dedicated ID S110, S210, S108 and S312 subs are also available.
ID84-T
Measuring 150mm wide x 215mm deep x the standard 1m high (39.0" x 5.9" x 8.5") and weighing 15kg (33lbs), the ID84 uses eight 4 inch drivers and an array of dome tweeters on a curved baffle in a light-weight aluminium cabinet with a rigid steel spine. The choice of dome tweeters over a conventional HF compression driver results in particularly low levels of distortion and contributes to a ‘hi-fi’ performance that extends the ID84’s suitability well beyond the traditional column speaker role of voice reproduction into music applications. The ID84 achieves a frequency range of 90Hz to 20kHz with…
ID84-I
Measuring 150mm wide x 215mm deep x the standard 1m high (39.0" x 5.9" x 8.5") and weighing 15kg (33lbs), the ID84 uses eight 4 inch drivers and an array of dome tweeters on a curved baffle in a light-weight aluminium cabinet with a rigid steel spine. The choice of dome tweeters over a conventional HF compression driver results in particularly low levels of distortion and contributes to a ‘hi-fi’ performance that extends the ID84’s suitability well beyond the traditional column speaker role of voice reproduction into music applications. The ID84 achieves a frequency range of 90Hz to 20kHz with…
ID84-TIS
Measuring 150mm wide x 215mm deep x the standard 1m high (39.0" x 5.9" x 8.5") and weighing 15kg (33lbs), the ID84 uses eight 4 inch drivers and an array of dome tweeters on a curved baffle in a light-weight aluminium cabinet with a rigid steel spine. The choice of dome tweeters over a conventional HF compression driver results in particularly low levels of distortion and contributes to a ‘hi-fi’ performance that extends the ID84’s suitability well beyond the traditional column speaker role of voice reproduction into music applications. The ID84 achieves a frequency range of 90Hz to 20kHz with…
ID84L-T
Also available, the ID84L is an LF extension version of the ID84, identical in every way but without the dome tweeters. The cabinet measures 990mm x 150mm x 163 mm. Available in black, white and custom RAL colours, the touring version (ID84L-T) features a steel grille and Speakon connectors.
ID84L-I
Also available, the ID84L is an LF extension version of the ID84, identical in every way but without the dome tweeters. The cabinet measures 990mm x 150mm x 163 mm. The installation version (ID84L-I) is IP54 rated for outdoor use and features a cloth covered grille. Speakers can be specified in custom RAL colours and use a cable gland with a 2-core cable for audio input.
ID84L-TIS
Also available, the ID84L is an LF extension version of the ID84, identical in every way but without the dome tweeters. The cabinet measures 990mm x 150mm x 163 mm. Also available in black, white and custom RAL colours, the hybrid TIS version (ID84L-TIS) features the Speakon connectivity of the touring version with the cloth covered grille of the installation version.
IDS312-T
Measuring 1160mm x 380mm x 350mm (45.7 x 15.0” x 13.8”) and weighing 31kg (68lbs), the IDS312 dedicated sub for ID84 columns features a convenient system for mounting and connecting an ID84 cabinet on top, extending system LF response down to 40Hz and creating a full range system that’s 2 metres in height. Constructed from 15mm Baltic birch plywood, the IDS312 also features rubber strips to isolate vibration in horizontally-mounted applications. Available in black, white and custom RAL colours, the touring version (IDS312-T) is IP2X rated and features a steel grille and Speakon connectors.
IDS312-I
Measuring 1160mm x 380mm x 350mm (45.7 x 15.0” x 13.8”) and weighing 31kg (68lbs), the IDS312 dedicated sub for ID84 columns features a convenient system for mounting and connecting an ID84 cabinet on top, extending system LF response down to 40Hz and creating a full range system that’s 2 metres in height. Constructed from 15mm Baltic birch plywood, the IDS312 also features rubber strips to isolate vibration in horizontally-mounted applications. The installation version (IDS312-I) is IP54 rated and features a cloth covered grille. Speakers can be specified in custom RAL colours and use a cable gland with a 2-core…
IDS312-TIS
Measuring 1160mm x 380mm x 350mm (45.7 x 15.0” x 13.8”) and weighing 31kg (68lbs), the IDS312 dedicated sub for ID84 columns features a convenient system for mounting and connecting an ID84 cabinet on top, extending system LF response down to 40Hz and creating a full range system that’s 2 metres in height. Constructed from 15mm Baltic birch plywood, the IDS312 also features rubber strips to isolate vibration in horizontally-mounted applications. Also available in black, white and custom RAL colours, the hybrid TIS version (IDS312-TIS) is IP2X rated and features the Speakon connectivity of the touring version with the cloth…
ID14-T
130mm wide, 130mm high and 120mm front to back, the ID14 is a super-compact full range speaker employing a custom-designed coaxial driver with a 1.3″ voice coil for the 4″ LF component and a 1.4″ diaphragm for the HF motor, delivering smooth, clean sound and impressive power. The Touring version is available in black, white or custom RAL colours and features a Magnelis steel grille and Speakon connectivity. Thanks to their fully symmetric design, there are there are no left or right versions of the ID14, so all speakers in the inventory can be the same. To ensure maximum versatility,…
ID14-I
130mm wide, 130mm high and 120mm front to back, the ID14-I is a super-compact full range speaker employing a custom-designed coaxial driver with a 1.3″ voice coil for the 4″ LF component and a 1.4″ diaphragm for the HF motor, delivering smooth, clean sound and impressive power. The Installation version is available in black, white or custom RAL colours and features an an acoustic cloth over the front of the grille and captive 2-core cable connectivity. Thanks to their fully symmetric design, there are there are no left or right versions of the ID14, so all speakers in the inventory…

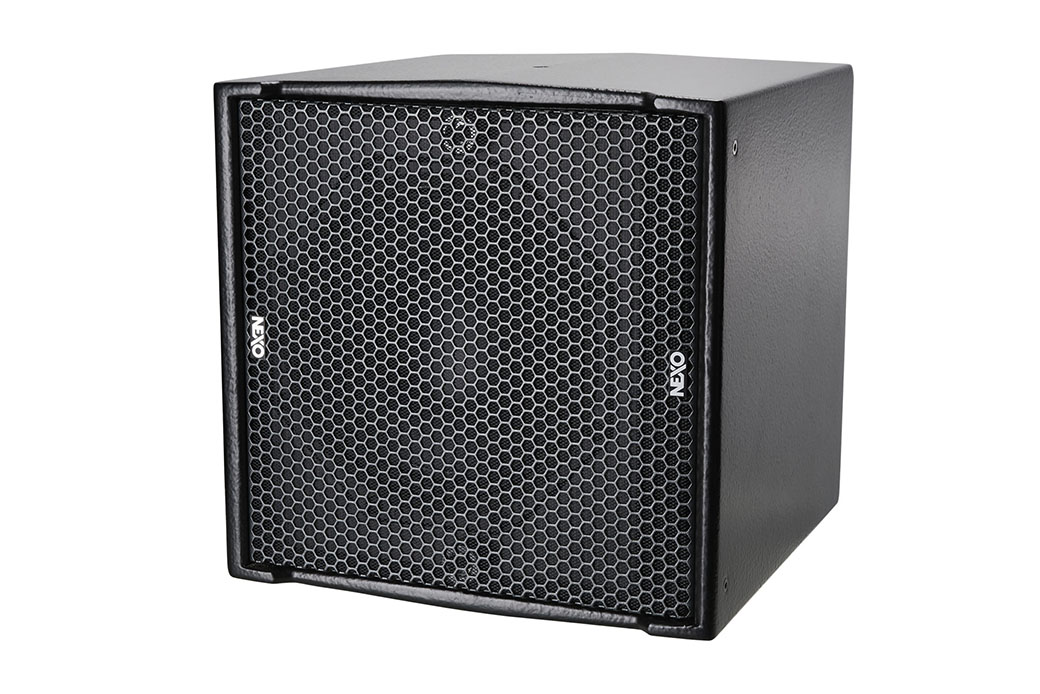

IDS108-T
Measuring just 305mm x 305mm x 305mm (12.0” x 12.0” x 12.0”) and weighing only 8 kg (17,6 lbs), the partner sub for the ID14 uses a high efficiency bass-reflex design employing a long excursion 8 inch Neodymium driver. The Touring version features one connection plate with two Speakon® connectors and a front Magnelis steel grill.

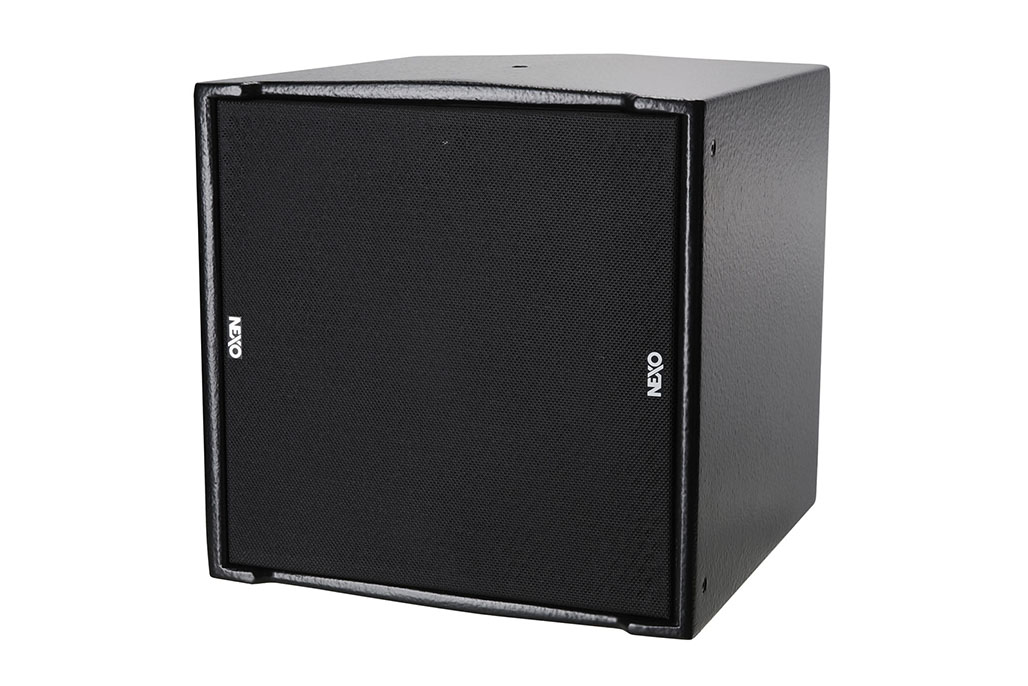

IDS108-I
Measuring just 305mm x 305mm x 305mm (12.0” x 12.0” x 12.0”) and weighing only 8 kg (17,6 lbs), the partner sub for the ID14 uses a high efficiency bass-reflex design employing a long excursion 8 inch Neodymium driver. The Installation version is available in black, white or custom colours on request. Connectivity is made through cable gland and captive two core cables, ensuring IP54 protection, while the front grill is covered by an acoustic cloth.
ID24-T
309mm wide, 132mm high and 233mm front to back, the ID24-T is a compact full range speaker using twin 4 inch drivers in a V formation plus an HF compression driver with rotatable horn. The horn can be rotated easily without the need for tools by a ‘screw head’ on the rear panel to give 60° x 60°, 90° x 40°, 120° x 40°, 120° x 60° (according to horns) HF coverage with the standard horn fitted. This increases the flexibility of the cabinet by allowing the HF horizontal dispersion to be ‘tuned’ for the given application. Primed for all…
ID24-I
Spec’d for the installation professional and designed for the widest range of applications, ID24-I (install spec) features threaded holes for compatibility with NEXO and 3rd-party mounting hardware. For rapid installation ID24-I is equipped with captive cable for fast, secure connectivity with existing wiring. Install models are available in Black or White with a matching fabric grille.
ID24-C
For applications that require the greatest degree of customisation, NEXO offers the ID24-C. Specifiers can choose from a wide range of options to design the speaker that perfectly meets requirements.
IDS110-T
Compact and powerful, the 1x10" sub measures just 285mm high x 525mm wide x 550mm deep, offering punchy sub bass performance in the smallest form factor. The touring version has handles and pole-mounting hardware, and features Speakon connectivity.
IDS110-E
Compact and powerful, the 1x10" sub measures just 285mm high x 525mm wide x 550mm deep, offering punchy sub bass performance in the smallest form factor. The install version has no handles and hardware, and features captive cable connectivity.
IDS210-T
For applications where space is less restricted, the 2x10" double sub delivers stunning performance in a box measuring just 285mm high x 1050mm wide x 550mm deep. The touring version has handles and pole-mounting hardware, and features Speakon connectivity.
IDS210-E
For applications where space is less restricted, the 2x10" double sub delivers stunning performance in a box measuring just 285mm high x 1050mm wide x 550mm deep. The install version has no handles and hardware, and features captive cable connectivity.
