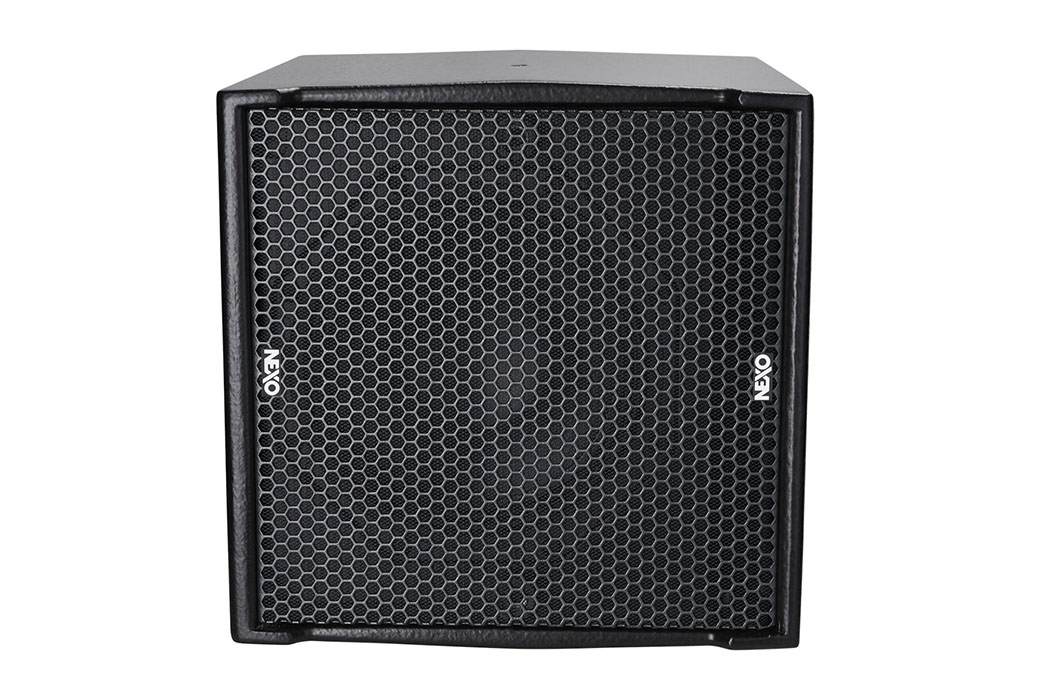

IDS108-T
Measuring just 305mm x 305mm x 305mm (12.0” x 12.0” x 12.0”) and weighing only 8 kg (17,6 lbs), the partner sub for the ID14 uses a high efficiency bass-reflex design employing a long excursion 8 inch Neodymium driver. The Touring version features one connection plate with two Speakon® connectors and a front Magnelis steel grill.
Key Features
- High power, compact sub that can be stacked or hanged, with or without its companion main element the ID14
- Light and easy to hang with dedicated bracket
- Touring version with Magnelis steel grille and Speakon connectivity
- Comprehensive range of accessories for deploying the IDS108 in a wide variety of applications
Specifications
| Frequency Response @-6 dB | 50 Hz to 150 Hz |
| Sensitivity 1W@1m | 95 dB |
| Peak SPL@1m | 122 dB |
| Available Crossover Frequencies | 50 – 120 Hz, 50 – 150 Hz |
| Nominal Impedance | 8 Ohms |
| Recommended Power | 300 to 500 Watts / 8 Ohms |
Features
| Component | 1 x 8” 8 Ohms long excursion Neodymium driver |
| Connectors | 2 x NL4, 4 poles connectors (1+/1- IDS108 / 2+/2- Through) |
| Rigging points | 2x M10 Threaded inserts + 2 x M6 threaded inserts |
| Construction | Baltic Birch Plywood |
| Finish | Black or White structural paint |
| Front Finish | Magnelis® front grill with back mesh |
| Operating temperature range | 0°C - 40 °C (32° F - 104° F) |
| Storage temperature range | -20 °C - 60 °C (-4 ° F - 140° F) |
| Height x Width x Depth | 305mm x 307mm x 305mm (12.0” x 12.1” x 12.0”) |
| Weight: Net | 8 kg / 17.6 lbs |
| |
| System Operation | |
| Recommended powering solution | DTDcontroller + DTDAMP4x0.7 : up to 2 x IDS108 per channel
|
| Optional powering solution | DTDcontroller + DTDAMP4x1.3 : up to 2 x IDS108 per channel |
| NXAMP4x1mk2 Powered TDcontroller: up to 3 x IDS108 per channel |
| NXAMP4x2mk2 Powered TDcontroller: up to 4 x IDS108 per channel |
| NXAMP4x4mk2 Powered TDcontroller: up to 4 x IDS108 per channel |
