SHARE THE POWER
microNXAMP4X1
Positioned in power rating between NEXO’s nanoNXAMP4 and NXAMPMk2 Powered TD Controllers, the microNXAMP4X1 combines advanced signal processing for all NEXO speakers inherited from the flagship NXAMPMk2 with state-of-the-art four channel Class-D amplifiers, a robust universal power supply with PFC and native Dante™ connectivity.

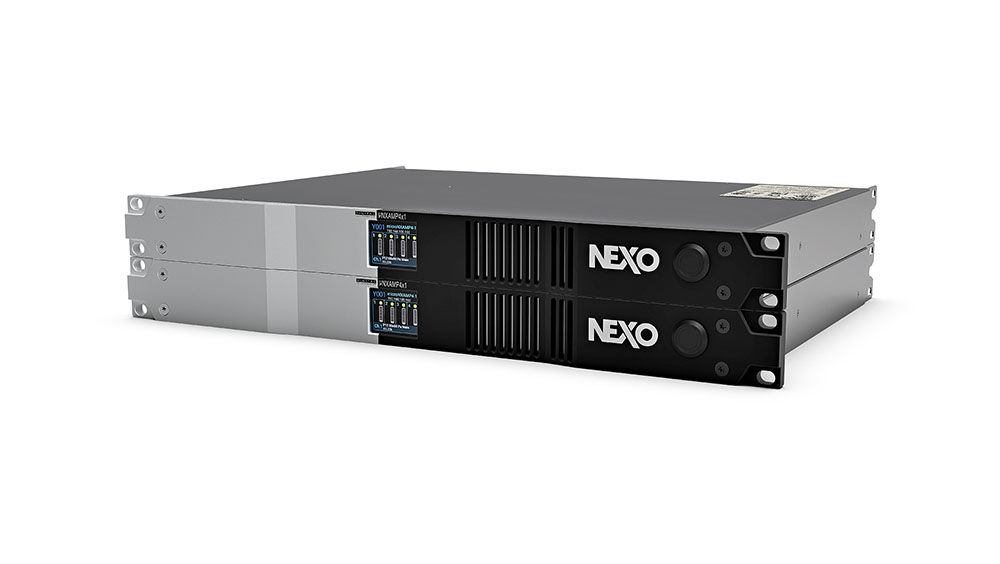

The perfect power solution for NEXO P+
Available in both touring and fixed installation versions with appropriate connectivity for each, microNXAMP4X1 is the ideal amplification and processing solution for NEXO’s P+ Series, helping to make systems configured from this industry-standard point source speaker range even more cost-effective in a wide range of applications.
Discover P+ Series

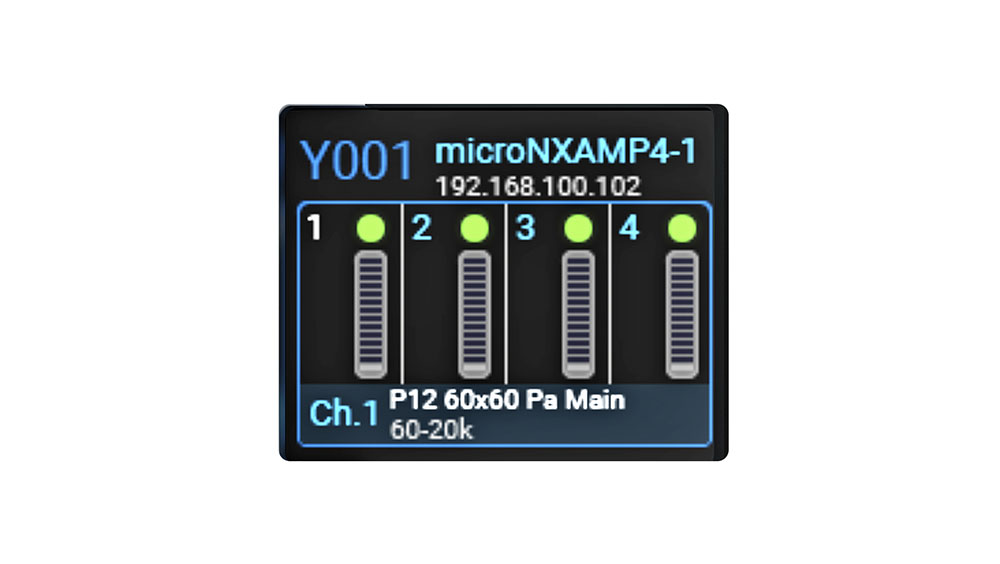

1.8-inch colour TFT
Housed in a compact and durable 1U rack-mounting case, the microNXAMP4X1 features a 1.8-inch colour TFT on the front panel displaying essential information including level meters, IP address, etc.
Power Sharing
The four high-efficiency Class-D amplifier channels deliver 1000W each into 4 Ohms and can be bridged in series –the classic ‘bridge’ mode for power amplifiers – and also in parallel to support lower output impedance, or both combining the four channels into a massive 4000W output. These various modes are configurable from the software and do not need external adaptors.
Power Processing
The microNXAMP4X1 features two multicore DSPs inherited directly from NEXO’s flagship NXAMPMk2 , providing a future- proofed hardware platform, equipped to host new algorithms and run next-generation firmware updates for years to come.
Power Versatility
With its continuous usable mains voltage range from 100 to 240 Volts, the microNXAMP4X1 can be used worldwide and run on all kinds of power generators. PFC (Power Factor Correction) technology ensures power conversion efficiency is always optimised and that the current drawn is smoothed and spike-free to limit stress on the mains network.
Power Saving
microNXAMP4X1 power consumption in stand-by mode conforms with ENERGY STAR certification requirements. A variety of wake-up modes include a network command, audio level detection or front panel button press, ensuring that stand-by power consumption is precisely tailored to the specific requirements of each use case.

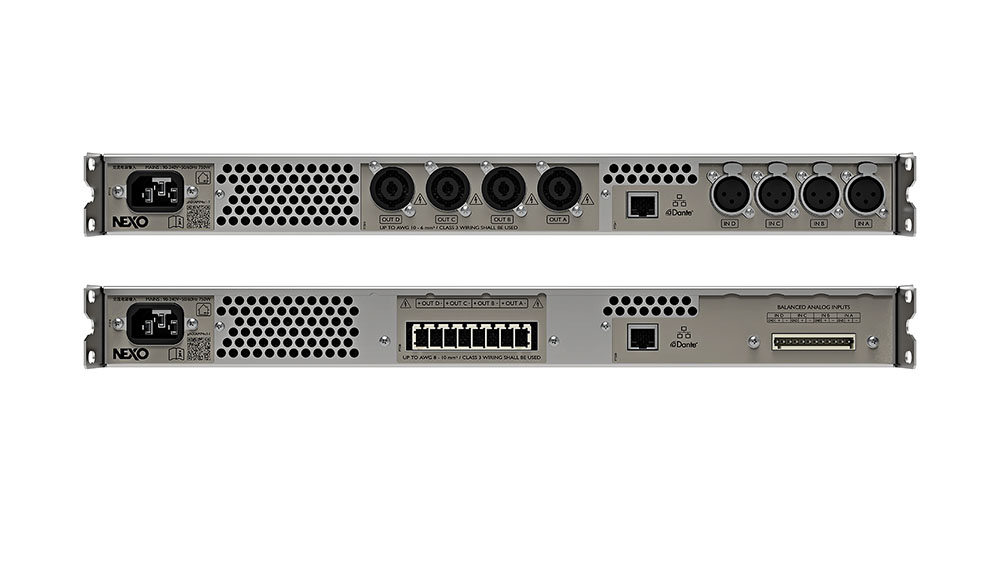

Dedicated versions for touring and fixed installations
Based on the same platform, the microNXAMP4X1 is available in either Touring or Installation versions with appropriate rear-panel connectivity for both applications.
The Touring version features industry-standard XLR connectors for each analog input and speakON 4 connectors for each power amplifier output.
The install version features WAGO connectors (3.5mm pitch for the input / 7.6 mm pitch for the output) with lateral locking levers and Push-in CAGE CLAMP® for toolless connection.

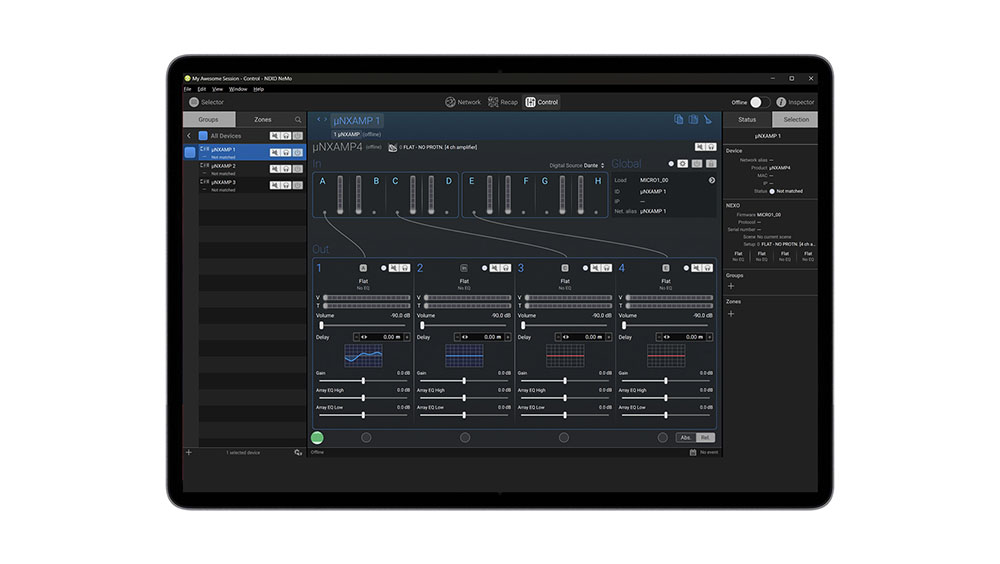

Easy setup and monitoring using NeMo remote control app
Available for Windows, macOS and iOS, NeMo is the complete System Management and Remote Control solution for NEXO Powered TD Controllers (NXAMP). A native Ethernet port on the rear panel of the microNXAMP4X1 offers seamless integration with NeMo for the easy configuration of DSP parameters and routing of input channels.
Get NeMo

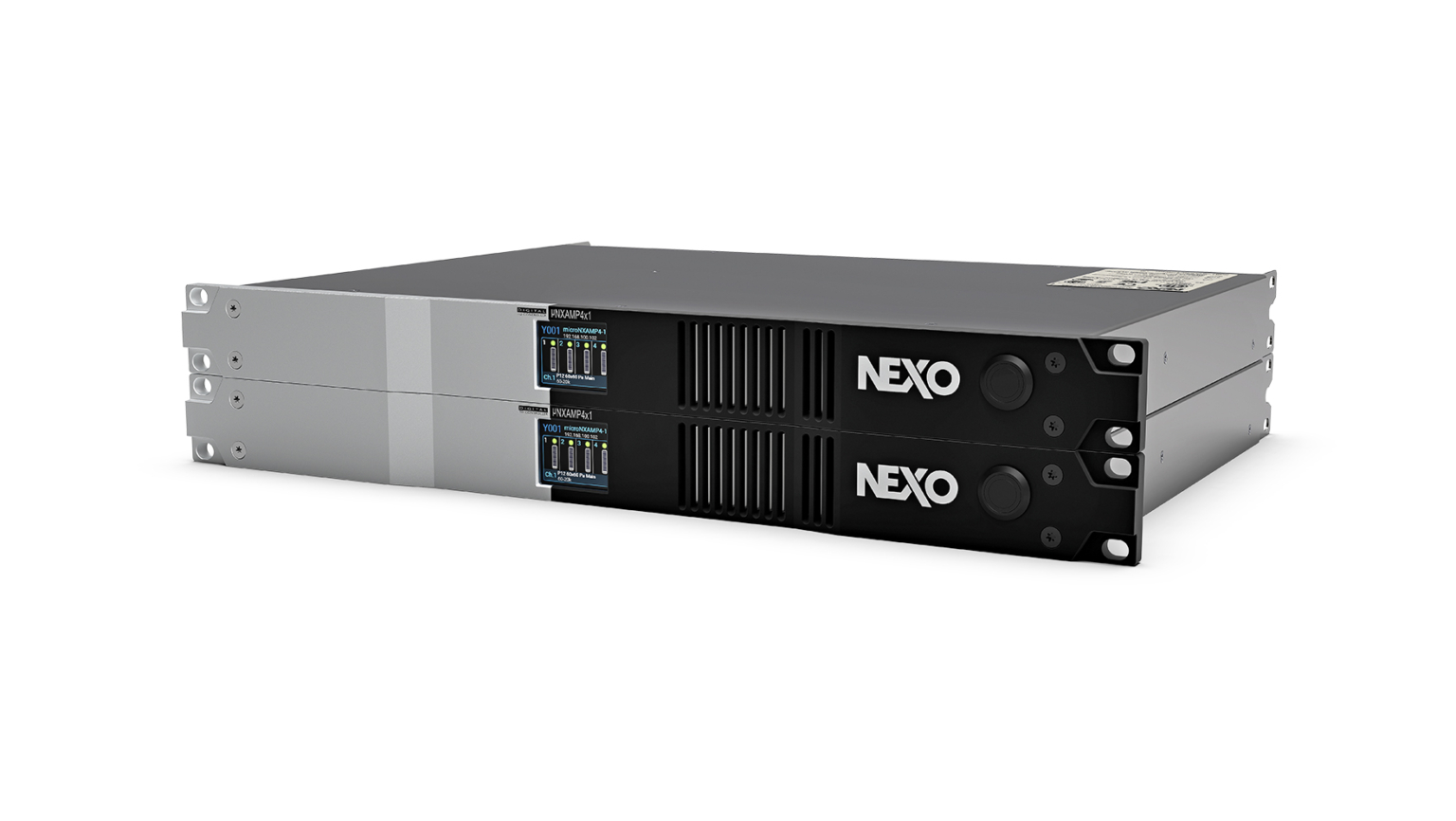

Key features and specifications
Click here for key features and detailed specifications of the microNXAMP4X1.
More

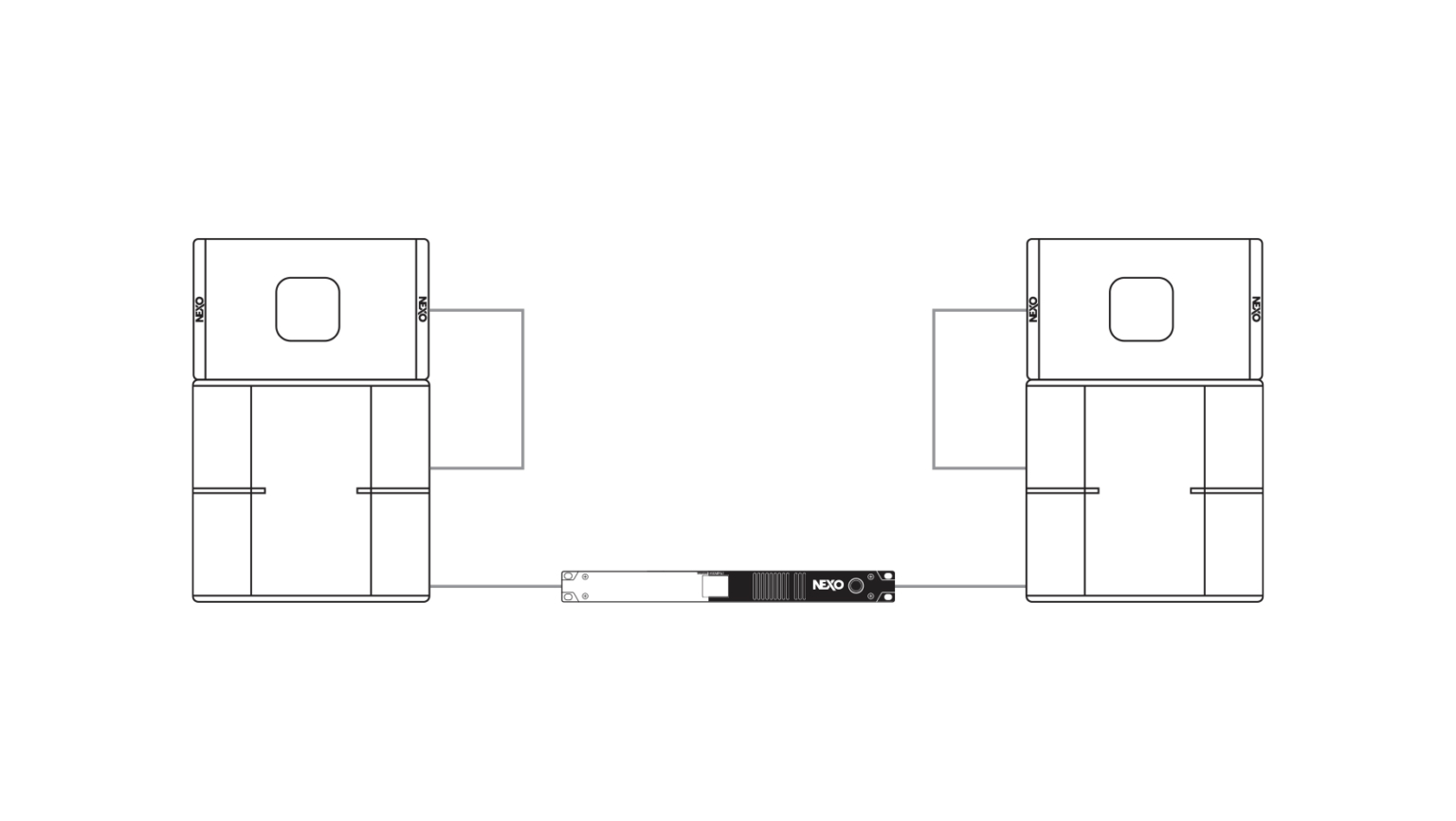

Typical DJ Monitoring System
Also a highly effective drum monitor, a P12 on an L15 sub makes for a great DJ monitor and a microNXAMP4X1 is the perfect amplification and processing solution for a stereo system.

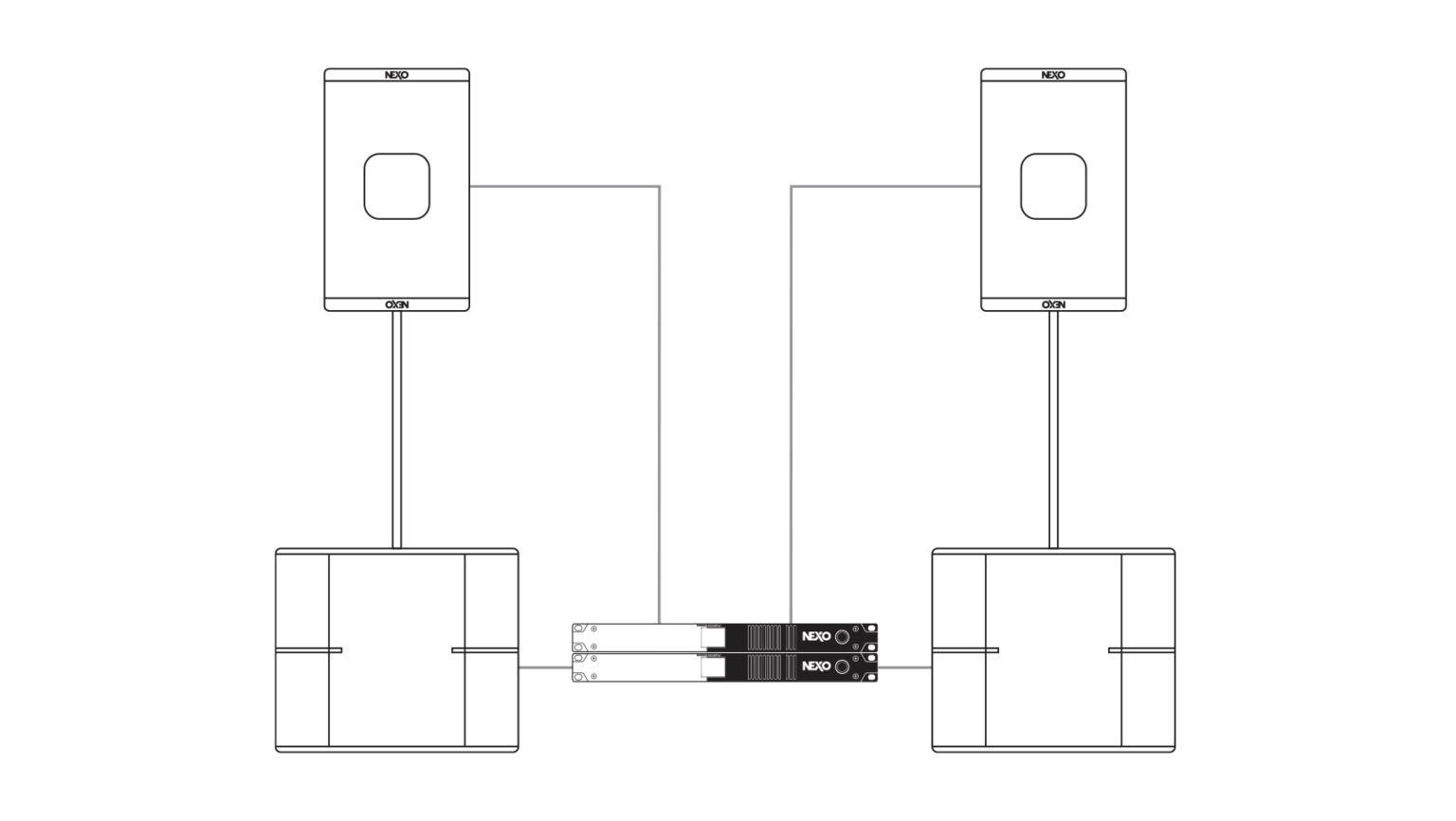

Typical Live Music FOH System
In a small club, a simple P15 / L18 system powered by a microNXAMP4X1 provides a surprisingly powerful FOH system with plenty of throw for a live band mic’ing drums, backline and vocals. Stereo P15 in active mode on one microNXAMP4x1 and Stereo L18 on another microNXAMP4x1 in BTL mode.

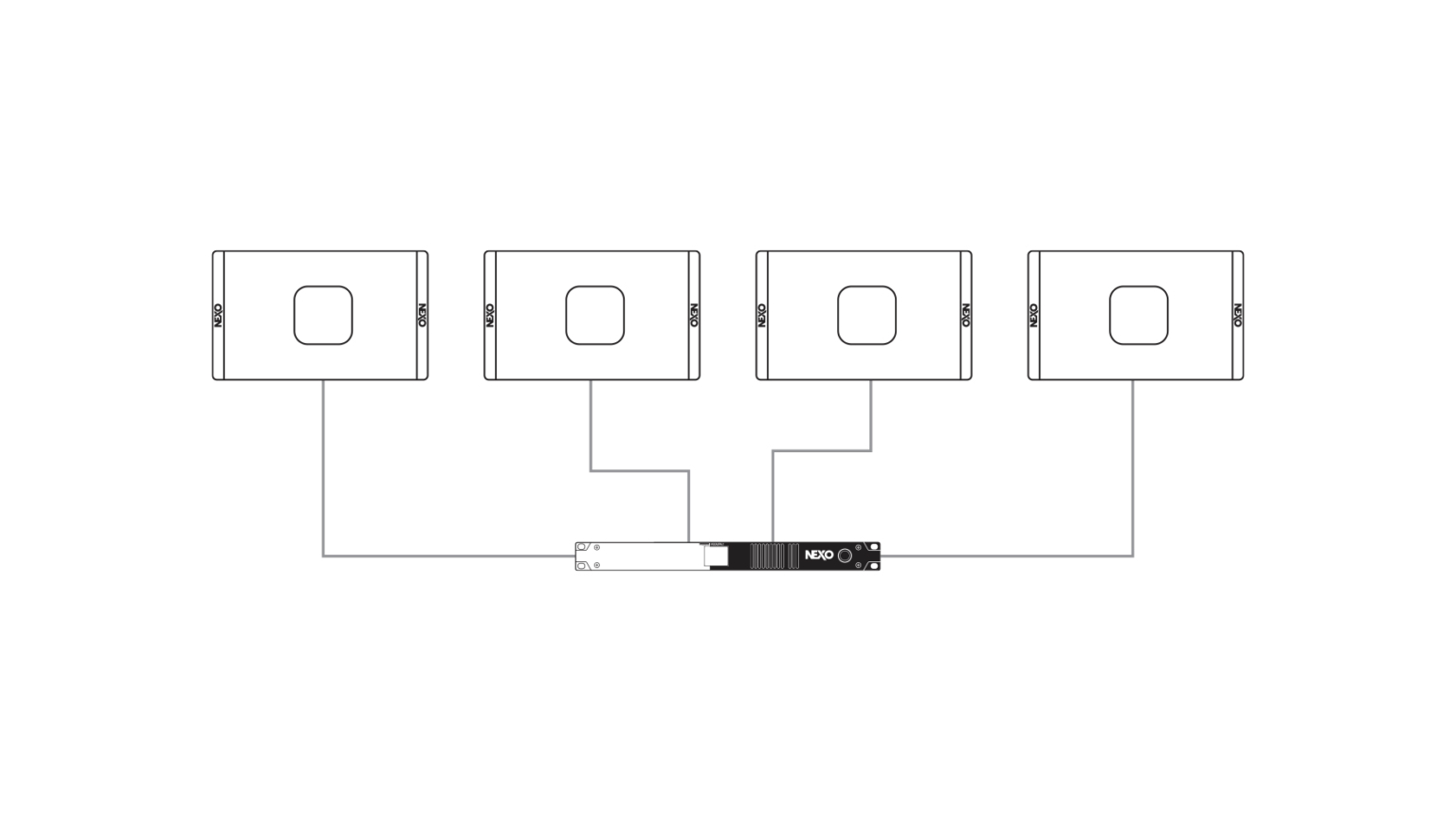

Typical Live Music Monitoring System
With HF directivity easily changed by a choice of magnetic horn flanges, the P12 has quickly gained a reputation as a highly effective wedge monitor with precision coverage and an absence of feedback issues. The microNXAMP4X1 provides an ideal amplification and processing engine for a 4-box passive P12 stage monitoring solution.

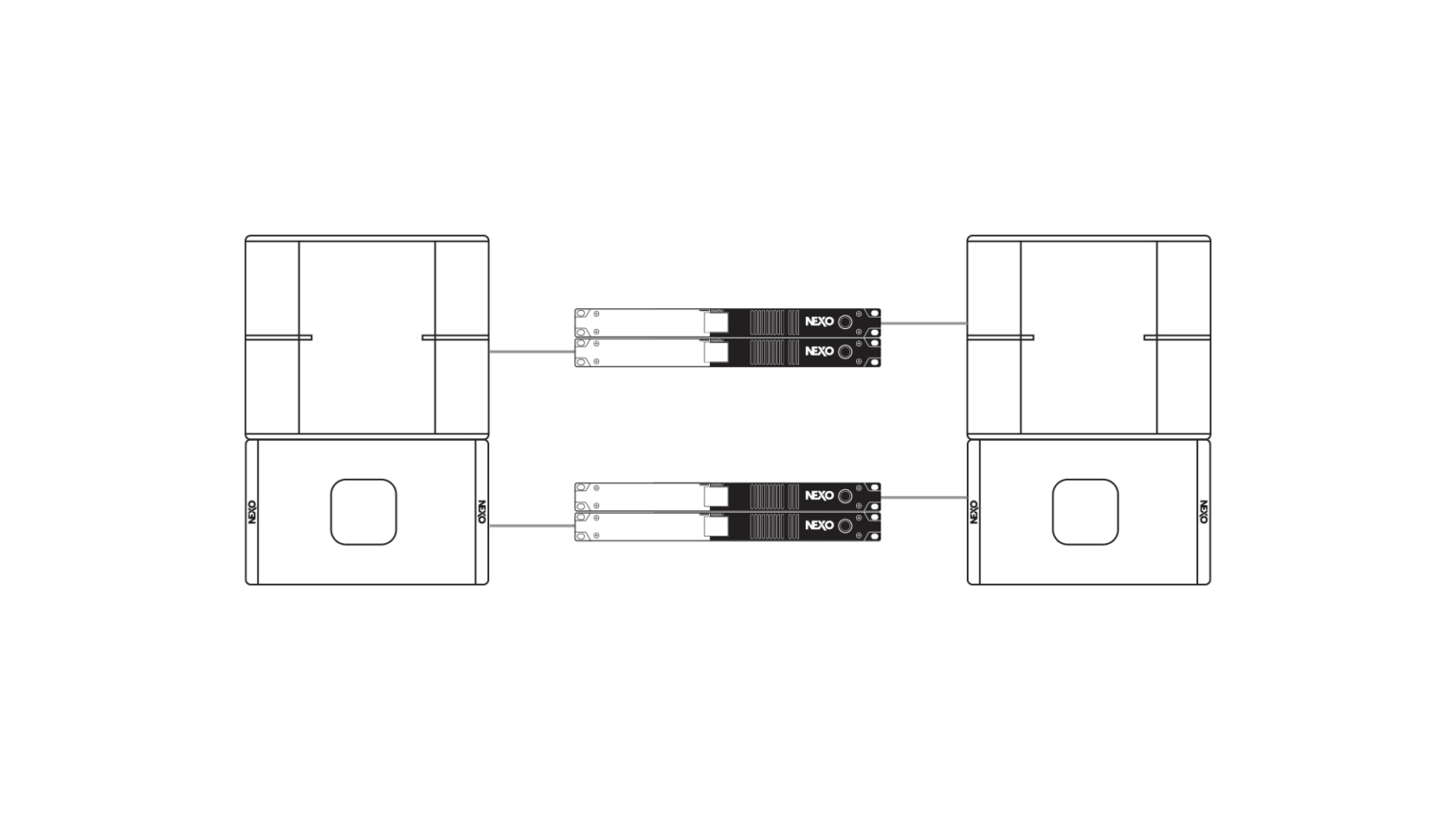

Typical Active Club System
Being able to bridge the microNXAMP4X1 in Serial, Parallel or Combined modes lies at the heart of this super-powerful system of P18/L20 clusters, with the main cabinets in Active mode for even greater SPL along with reduced distortion and enhanced dispersion around the crossover frequencies.
Typical Fixed Installation System
As a powerful, flexible and cost-effective combined amplification and processing solution with all the right connectivity, the dedicated Installation version of the microNXAMP4X1 helps to significantly reduce the overall cost of fixed sound system using NEXO P8 or P10 point source loudspeakers.

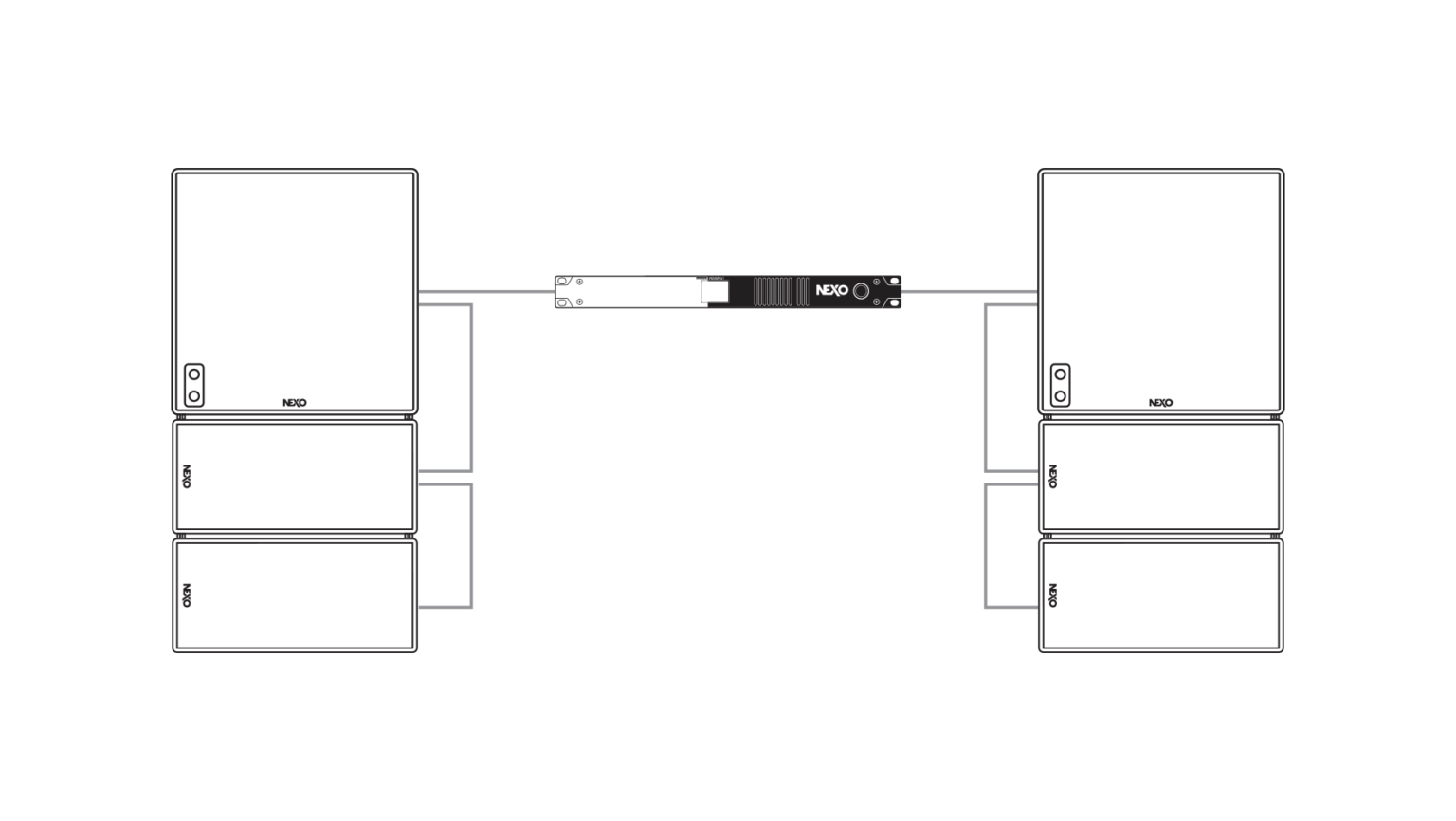

Typical Small Theatre System
Low power consumption and low fan noise in idle mode make the microNXAMP4X1 an ideal amplification and processing solution for small theatres, in this case powering a stereo FOH system comprising hangs of 2 x ultra compact GEO M6 speakers flown beneath a single MSUB12.

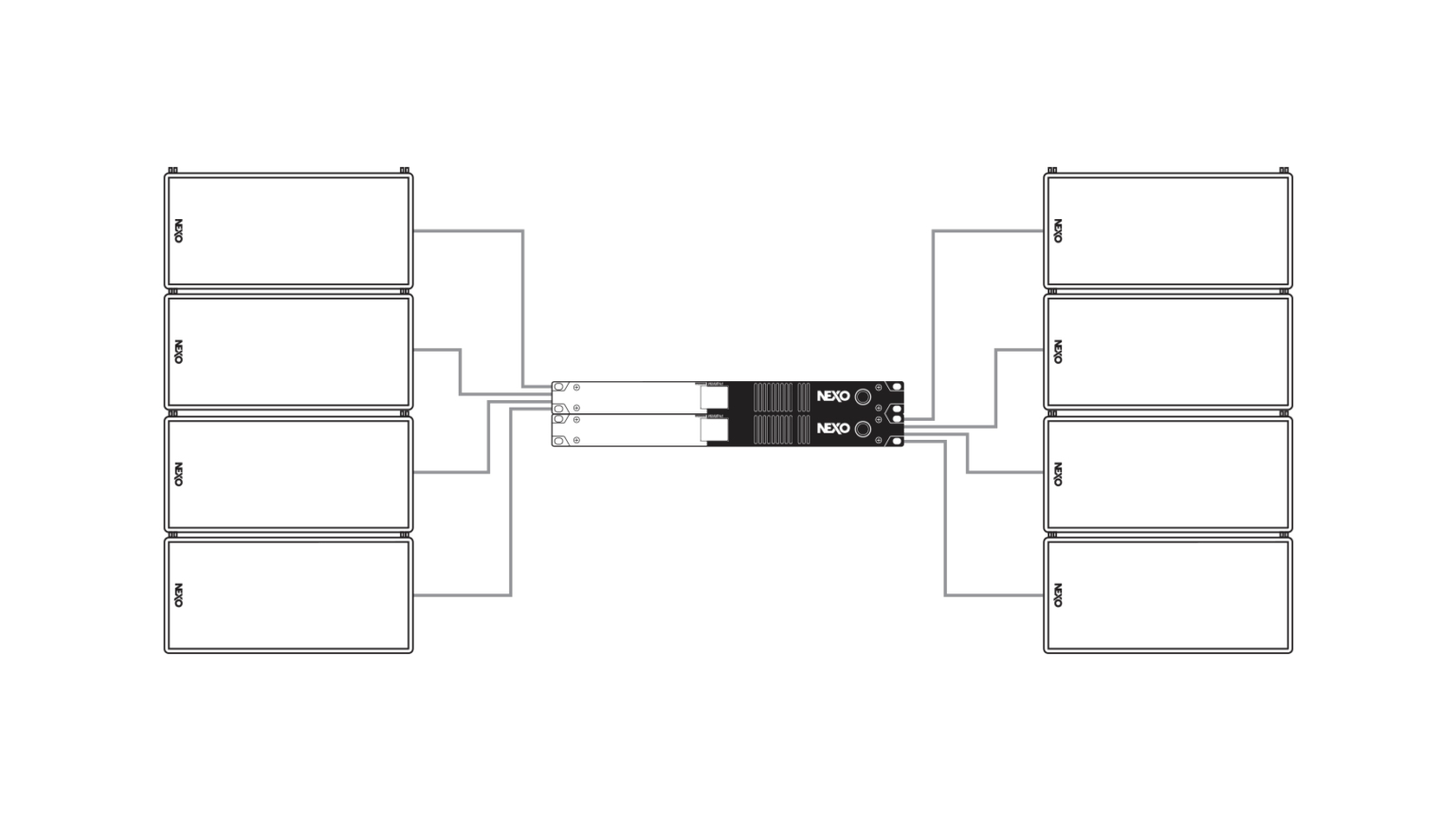

Typical Mid-size Theatre System
In a mid-size theatre, just two microNXAMP4X1s are required to power a potent and versatile line array system comprising left and right hangs of 4 x GEO M10s.
