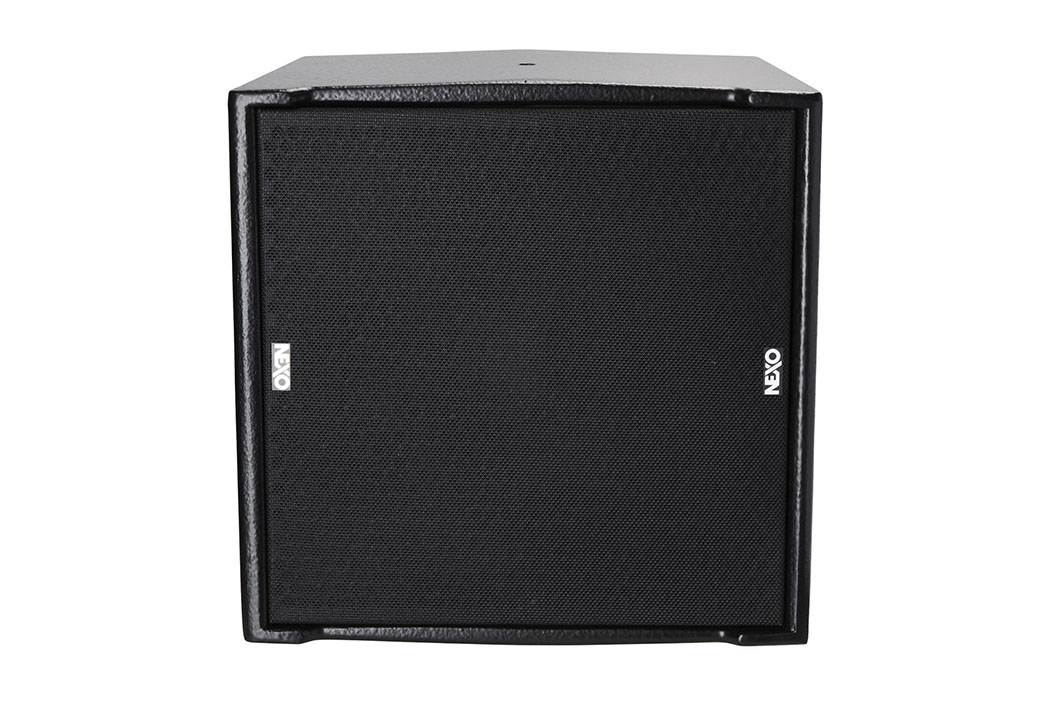

Measuring just 305mm x 305mm x 305mm (12.0” x 12.0” x 12.0”) and weighing only 8 kg (17,6 lbs), the partner sub for the ID14 uses a high efficiency bass-reflex design employing a long excursion 8 inch Neodymium driver. The Installation version is available in black, white or custom colours on request. Connectivity is made through cable gland and captive two core cables, ensuring IP54 protection, while the front grill is covered by an acoustic cloth.

Key Features

  • High power, compact sub that can be stacked or hanged, with or without its companion main element the ID14
  • Light and easy to hang with dedicated bracket
  • Installation version with captive two core cable connectivity
  • Comprehensive range of accessories for deploying the IDS108 in a wide variety of applications

Specifications

Frequency Response @-6 dB50 Hz to 150 Hz
Sensitivity 1W@1m95 dB
Peak SPL@1m 122 dB
Available Crossover Frequencies50 – 120 Hz, 50 – 150 Hz
Nominal Impedance8 Ohms
Recommended Power300 to 500 Watts / 8 Ohms

Features

Component1 x 8” 8 Ohms long excursion Neodymium driver
Connectors1 x Cable gland with 2 cores cables
Rigging points2x M10 Threaded inserts + 2 x M6 threaded inserts
ConstructionBaltic Birch Plywood
FinishBlack or White structural paint
Front FinishUV Resistant acoustic fabric fitted Magnelis® front grill
Operating temperature range0°C - 40 °C (32° F - 104° F)
Storage temperature range-20 °C - 60 °C (-4 ° F - 140° F)
Height x Width x Depth305mm x 307mm x 305mm (12.0” x 12.1” x 12.0”)
Weight: Net8 kg / 17.6 lbs
System Operation
Recommended powering solutionDTDcontroller + DTDAMP4x0.7 : up to 2 x IDS108 per channel
Optional powering solutionDTDcontroller + DTDAMP4x1.3 : up to 2 x IDS108 per channel
NXAMP4x1mk2 Powered TDcontroller: up to 3 x IDS108 per channel
NXAMP4x2mk2 Powered TDcontroller: up to 4 x IDS108 per channel
NXAMP4x4mk2 Powered TDcontroller: up to 4 x IDS108 per channel
