ID S108-I
불과한 ID14의 파트너 서브는 8 인치 네오디늄 롱 익스커션 드라이버를 채택한 고효율 베이스 리플렉스 디자인을 적용하였습니다. 설치 버전은 검정색, 흰색 또는 사용자 지정의 색상으로 제공됩니다. 연결은 케이블 글랜드가있는 캡 티브 2 개의 코어 케이블을 통해 이루어지며 IP54 방수등급을 보장하며 전면 그릴은 어코스틱 페브릭 천으로 덮여 있습니다.
Key Features
- 메인의 보조 요소 인 ID14의 유무에 관계없이 스택또는 플라잉 할 수 있는 고출력 소형 서브우퍼.
- 전용 브래킷으로 가볍고 쉽게 매달 수 있음

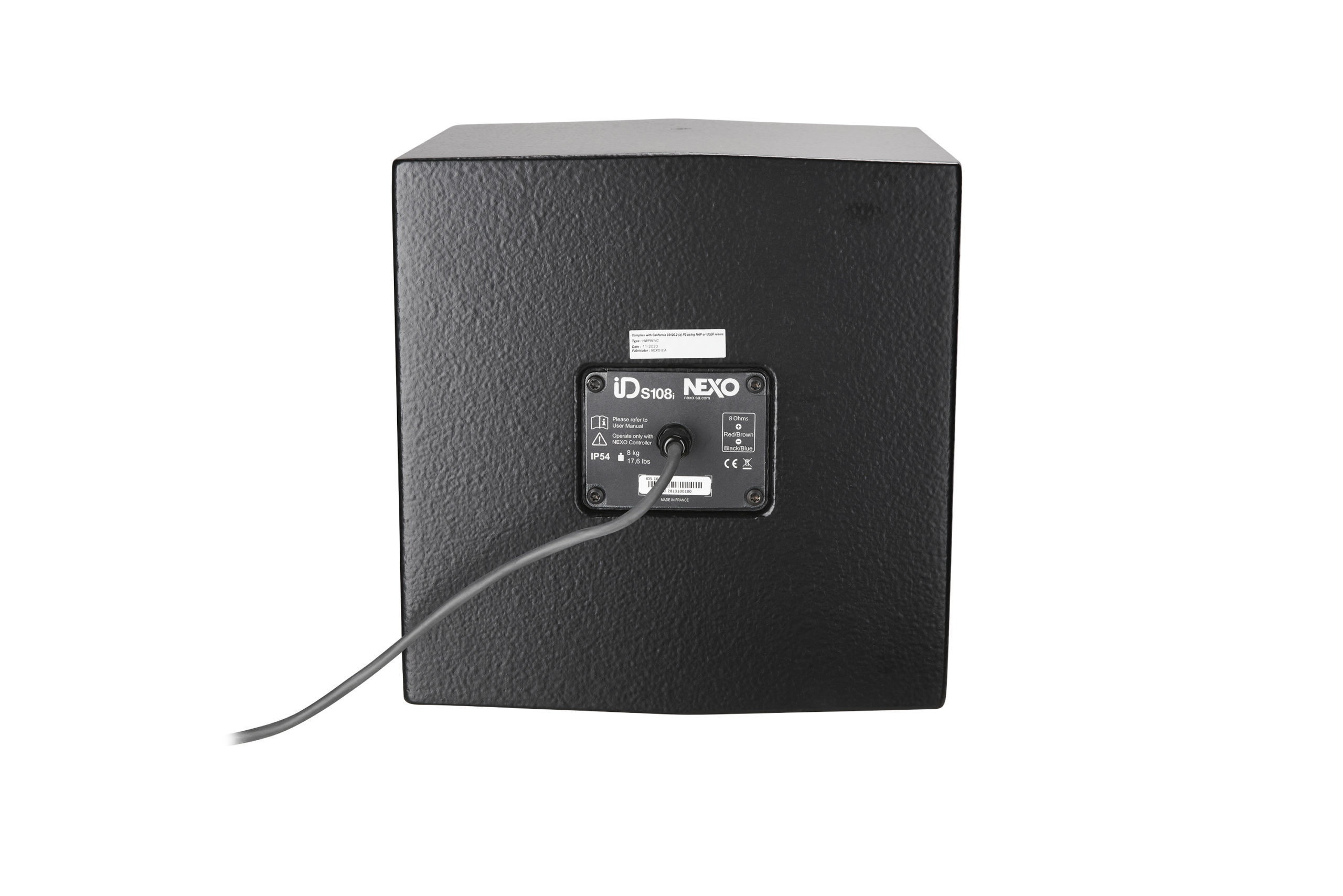

- 캡 티브 2 코어 케이블 연결이되는 설치 버전
- 다양한 애플리케이션에 IDS108을 사용하기위한 포괄적인 액세서리
Specifications
Frequency Response @-6 dB | 50 Hz to 150 Hz |
Sensitivity 1W@1m | 95 dB |
Peak SPL@1m | 122 dB |
Available Crossover Frequencies | 50 – 120 Hz, 50 – 150 Hz |
Nominal Impedance | 8 Ohms |
Recommended Power | 300 to 500 Watts / 8 Ohms |
Features
Component | 1 x 8” 8 Ohms long excursion Neodymium driver |
Connectors | 1 x Cable gland with 2 cores cables
|
Rigging points | 2x M10 Threaded inserts + 2 x M6 threaded inserts
|
Construction | Baltic Birch Plywood
|
Finish | Black or White structural paint
|
Front Finish | UV Resistant acoustic fabric fitted Magnelis® front grill |
Operating temperature range | 0°C - 40 °C (32° F - 104° F) |
Storage temperature range | -20 °C - 60 °C (-4 ° F - 140° F) |
Height x Width x Depth | 305mm x 307mm x 305mm (12.0” x 12.1” x 12.0”) |
Weight: Net | 8 kg / 17.6 lbs
|
| |
System Operation | |
Recommended powering solution | DTDcontroller + DTDAMP4x0.7 : up to 2 x IDS108 per channel |
Optional powering solution | DTDcontroller + DTDAMP4x1.3 : up to 2 x IDS108 per channel |
| NXAMP4x1mk2 Powered TDcontroller: up to 3 x IDS108 per channel |
| NXAMP4x2mk2 Powered TDcontroller: up to 4 x IDS108 per channel |
| NXAMP4x4mk2 Powered TDcontroller: up to 4 x IDS108 per channel |
