P10

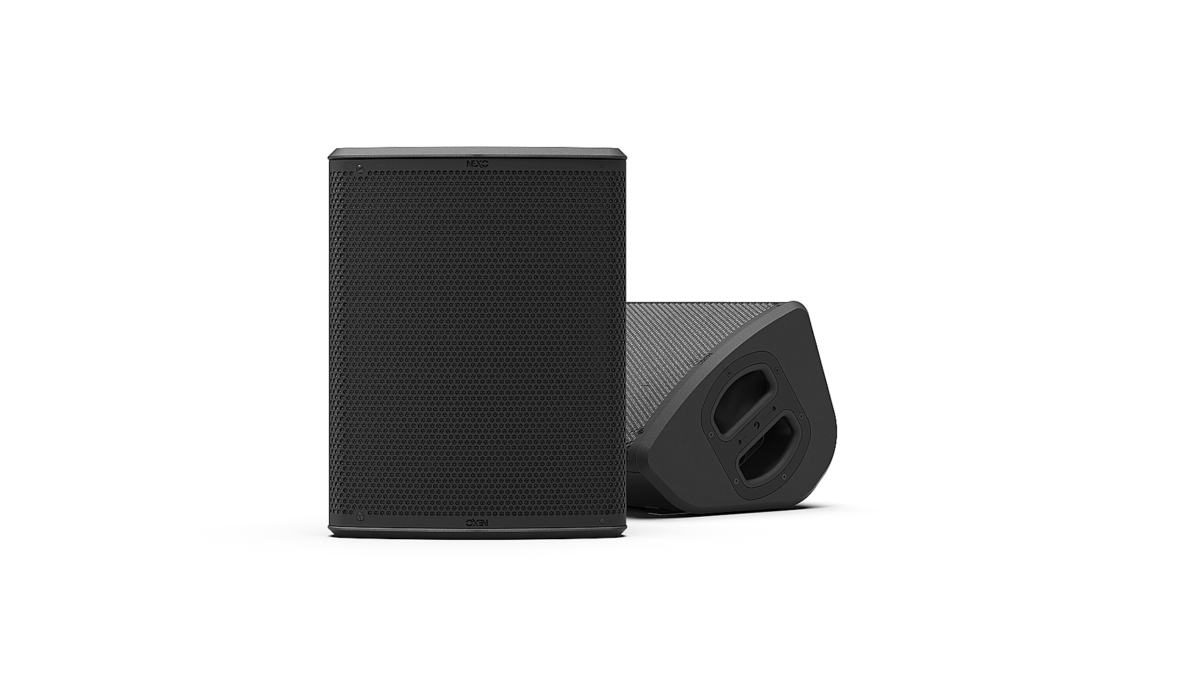

Measuring 384mm wide x 497mm high x 274mm deep and weighing 15Kg, the P10 can be deployed in vertical or horizontal (wedge monitor) configurations, with HF directivity set to match the specific application. Speakon connectors are located in the side-mounting handles and the back plate (Touring version only). Installation versions are available in custom RAL colours and feature a fixed cloth-covered grille, universal rigging points on the sides and bottom of the cabinet and 2-core cable for audio input to ensure IP54 protection index. TIS versions feature touring handles and connectivity, with cloth-covered grilles. The P10 is passive only.
Key Features
- Compact, low-profile, curvilinear enclosure
- 10” LF Neodymium driver and 1.7” diaphragm HF driver in a coaxial configuration
- Variable HF directivity
- 136dB peak SPL
- Threaded inserts on the back and on both sides for connection of mounting accessories
- Stand fitting on both sides
- 4x NL4, 4 poles connectors; 2 on the back and 1 on both sides
- Touring, installation and TIS versions
Specifications
| With NEXO Processing | |
| |
| Frequency Response (+6 dB) | 63 Hz to 20 kHz |
| Sensitivity 1W@1m | 107 dB SPL Nominal |
| Peak SPL Level (1m) | 136 dB Peak |
| Recommended Amplifiers | 550 to 870 Watts / 8Ω |
| HF Dispersion (according to horn) | 100° x 100° (Default) - 110° x 60° (with 110° x 60° optional horn) |
| Crossover Frequency | 63 Hz, 85 Hz, 120 Hz |
| Nominal Impedance | 8Ω |
| Recommended Power | 550 to 870 Watts into 8 Ω |
Features
| Components | 1 x Coaxial Neodymium LF 10" 8 Ohms long excursion & HF 1.7" 8 Ohms |
| Number of ways | 2 ways passive |
| Connectors (Touring/TIS versions) | 4 x NL4, 4 poles connectors (1 per handle + 2 at the back) |
| Connectors (Install version) | 1 x Cable gland with 2 cores cable |
| Rigging points | 1 x universal accessory fit on each side + 1 x on the bottom |
| Material | Custom made bent plywood of baltic birch and poplar |
| Finish | Black or White structural paint |
| Front Finish (Touring version) | Magnelis® steel front grille + back mesh |
| Front Finish (Install/TIS versions) | UV resistant acoustic fabric fitted front grill |
| Height x Width x Depth | 497 mm x 384 mm x 274mm (19.6" x 15.2" x 10.8") |
| Weight: Net | 15 kg (33 lbs) |
| Operating Temperature Range | 0°C - 40 °C (32° F - 104° F) |
| Storage Temperature Range | -20 °C - 60 °C (-4 ° F - 140° F) |
| |
| System Operation | |
| |
| Recommended Powering Solution | NXAMP4X1MK2: 1 x P10 per channel |
| |
| Optional Powering Solutions | DTD + DTDAMP4X1.3: Up to 2 x P10 per channel |
| NXAMP4X2MK2: Up to 4 x P10 per channel |
| NXAMP4X4MK2: Up to 4 x P10 per channel |
