P15

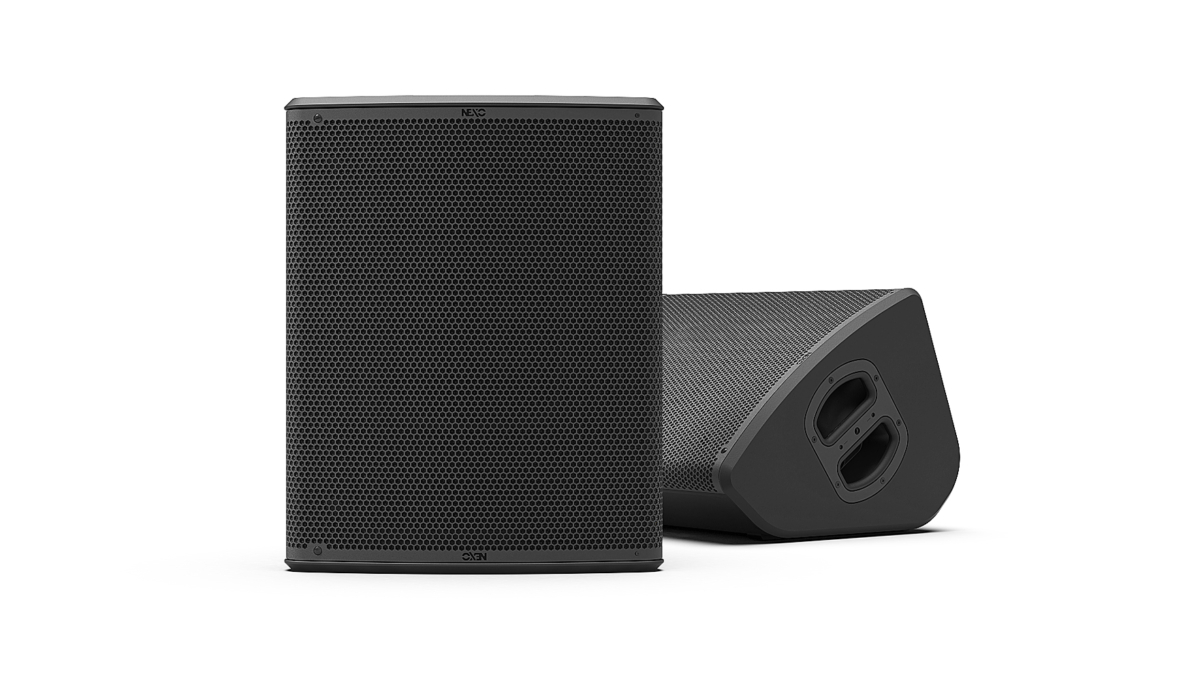

Housed in a curvilinear enclosure of custom birch and poplar plywood, the P15 employs a purpose-designed 15″ LF Neodymium driver and 3″ diaphragm HF driver in a coaxial configuration. The compact cabinet measures just 600mm x 483mm x 352mm, and can be deployed in vertical or horizontal (wedge monitor) configurations, with HF directivity set to match the specific application. The back plate holds two Speakon® connectors (plus one each on both sides) and a recessed switch to change the cabinet from 2-way passive to 2-way active mode. Installation versions are available in custom RAL colours and feature a fixed cloth-covered grille, universal rigging points on the sides and bottom of the cabinet and 2-core cable for audio input to ensure IP54 protection index. TIS versions feature touring handles and connectivity, with cloth-covered grilles.
Key Features
- Compact, low-profile, curvilinear enclosure
- 15” LF Neodymium driver and 3” diaphragm HF driver in a coaxial configuration
- Variable HF directivity
- Switchable Active/Passive modes
- 141dB peak SPL (Active Mode)
- Threaded inserts on the back and on both sides for connection of mounting accessories
- Stand fitting on both sides
- 4x NL4, 4 poles connectors; 2 on the back and 1 on both sides
- Touring, installation and TIS versions
Specifications
Frequency Response @-6 dB | 57 Hz - 20 kHz |
Sensitivity 1W@1m | 108 dB SPL Nominal |
Peak SPL@1m | 139 dB Peak (Passive mode) / 141 dB Peak (Active mode) |
Operating Voltage | 55 Vrms (180 Vpeak) |
HF Dispersion (according to flanges) | 60°x60° (Default) - 90°x40° (with 90x40 flange) - 50°~90°x40° (with PS flange) |
Crossover Frequency | 57 H, 85 Hz, 120Hz |
Nominal Impedance | Active mode: (8 Ω LF + 8 Ω HF) / Passive mode: 8 Ω |
Recommended Power | Active: (800 to 1350 W LF + 400 to 630 W HF) / Passive: 800 to 1350 W |
Features
Components | 1 x Coaxial Neodymium LF 15” 8 Ohms long excursion & HF 3“ 8 Ohms |
Number of ways (Touring version) | 2 ways passive (2+/2- P15) or 2 ways active (1+/1- LF, 2+/2- HF) switchable |
Number of ways (Install version) | 2 ways passive |
Connectors (Touring version) | 4 x NL4, 4 poles connectors (1 per handle + 2 at the back) |
Connectors (Install version) | 1 x Cable gland with 2 cores cable |
Rigging points | 1 x universal accessory fit on each side + 1 x on the bottom |
Material | Custom made bent plywood of baltic birch and poplar |
Finish | Black or White structural paint |
Front Finish (Touring version) | Steel front grille + back mesh |
Front Finish (Install version) | Acoustic fabric fitted front gril |
Weight: Net | 23 kg |
Height x Width x Depth | 600mm x 483mm x 352 mm |
Operating temperature range | 0°C - 40°C |
Storage temperature range | -20°C - 60°C |
System Operation | |
Recommended powering solution | NXAMP4x2mk2 Powered TDcontroller: up to 2 x P15 per channel |
Optional powering solution | DTDcontroller + DTDAMP4x0.7 (bridgé) : 1 x P15 per channel |
NXAMP4x1mk2 Powered TDcontroller (Bridged): up to 2 x P15 per channel | |
NXAMP4x4mk2 Powered TDcontroller: up to 4 x P15 per channel |
