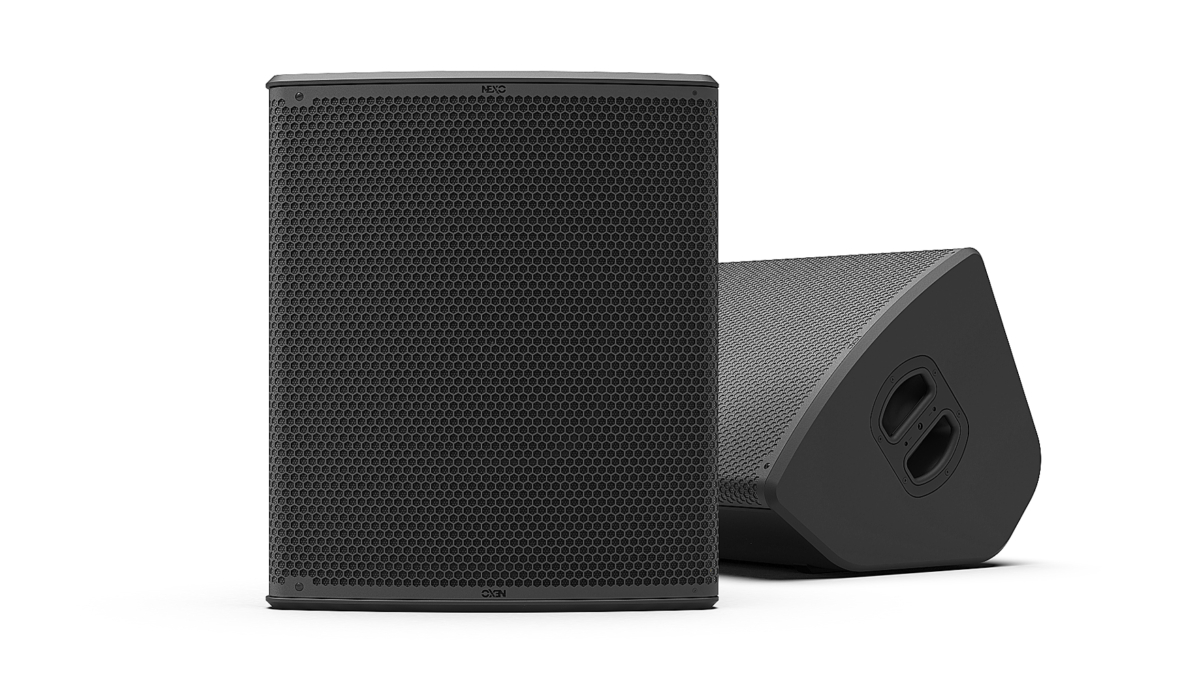

Housed in a curvilinear enclosure of custom birch and poplar plywood, the P18 employs a purpose-designed 18″ LF Neodymium driver and 4″ diaphragm HF driver in a coaxial configuration.  The compact cabinet measures just 680mm x 579mm x 446mm, and can be deployed in vertical or horizontal (wedge monitor) configurations, with HF directivity set to match the specific application. The back plate holds two Speakon® connectors (plus one each on both sides) and a recessed switch to change the cabinet from 2-way passive to 2-way active mode. Installation versions are available in custom RAL colours (Passive only) and feature a fixed cloth-covered grille, universal rigging points on the sides and bottom of the cabinet and 2-core cable for audio input to ensure IP54 protection index. TIS versions feature touring handles and connectivity, with cloth-covered grilles.

Key Features

  • Compact, low-profile, curvilinear enclosure
  • 18” LF Neodymium driver and 4” diaphragm HF driver in a coaxial configuration
  • Variable HF directivity
  • Switchable Active/Passive modes (Touring and TIS versions)
  • 142dB peak SPL (Active Mode)
  • Threaded inserts on the back and on both sides for connection of mounting accessories
  • Stand fitting on both sides
  • 4x NL4, 4 poles connectors; 2 on the back and 1 on both sides
  • Touring, installation and TIS versions


Frequency Response @-6 dB50 Hz to 20 kHz
Sensitivity 1W@1m107 dB SPL Nominal
Peak SPL@1m140 dB Peak (Passive mode) / 142 dB Peak (Active mode)
Operating Voltage55 Vrms (180 Vpeak)
HF Dispersion (according to flanges)60°x60° (Default) - 90°x40° (with 90x40 flange) - 50°~90°x40° (with PS flange)
Crossover Frequency50 Hz, 85 Hz, 120 Hz
Nominal ImpedanceActive: (8 Ohms   LF + 8 Ohms   HF) / Passive: 8 Ohms  
Recommended PowerActive: (1200 to 1900 W LF + 600 to 950 W HF) / Passive: 1200 to 1900 W


Components1 x Coaxial Neodymium LF 18” 8 Ohms long excursion & HF 4“ 8 Ohms
Number of ways (Touring and TIS version)2 ways passive (2+/2- P18) or 2 ways active (1+/1- LF, 2+/2- HF) switchable
Number of ways (Install version)2 ways passive
Connectors (Touring and TIS version)4 x NL4, 4 poles connectors (1 per handle + 2 at the back)
Connectors (Install version)1 x Cable gland with 2 cores cable
Rigging points1 x universal accessory fit on each side + 1 x on the bottom
MaterialCustom made bent plywood of baltic birch and poplar
FinishBlack or White structural paint
Front Finish (Touring version)Magnelis® front grille + back fabric behind
Front Finish (Install and TIS version)Acoustic fabric fitted front grille
Height x Width x Depth680mm x 579mm x 446mm (26.8” x 22.8” x 17.6”)
Weight: Net33 kg (73 lbs)
Operating temperature range0°C - 40 °C (32° F - 104° F)
Storage temperature range-20 °C - 60 °C (-4 ° F - 140° F)
System Operation
Recommended powering solutionNXAMP4x4mk2 Powered TDcontroller: up to 3 x P18 per channel
Optional powering solutionDTDcontroller + DTDAMP4x0.7 (Bridged) : 1 x P18 per bridged channels
NXAMP4x1mk2 Powered TDcontroller (Bridged): up to 2 x P18 per bridged channels
NXAMP4x2mk2 Powered TDcontroller: 1 x P18 per channel
