The world's most advanced compact line array

59Hz - 20kHz the smart way

The 2-way passive GEO M10 employs a single 10″ driver to deliver the principal benefit of extended LF response over conventional, dual 6″ designs. But it’s not just a case of specifying a high-performance, latest-generation, Neodymium-magnet drive unit. With GEO M10, NEXO has built on its proven expertise in deploying single 10″ drivers – the GEO S8 and PS10 being among the world’s most successful compact line array and sound reinforcement speakers respectively – to optimise the many advantages of this configuration while removing what may previously have been perceived as drawbacks. The cabinet is injection-moulded from the same reticulate urethane co-polymer material used in the groundbreaking STM M28 cabinet. Strong and light in weight, this material is also very rigid, improving sonic performance. And that’s just the beginning. GEO M10 is packed full of groundbreaking and patented NEXO technologies, making it the world’s most advanced compact line array.

Patented Hyperbolic Reflective Wavesource

GEO M10 makes full use of NEXO’s patented Hyperbolic Reflective Wavesource (HRW™) to control acoustic energy by creating a virtual wavesource ‘outside the box’, resulting in optimal wavesource coupling without destructive interference.

Patented Phase Directivity Device

A Phase Directivity Device (PDD) on each cone driver extends the upper frequency limit for file source coupling between adjacent speakers. 10″ drivers coherently couple as if there were twice as many 5″ cones mounted at half the physical distance.

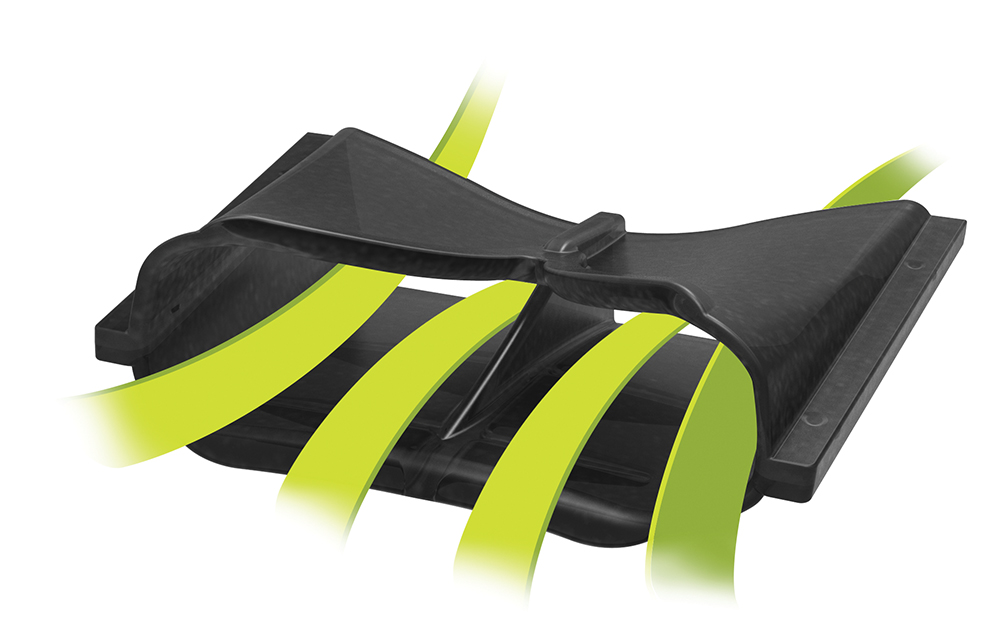

Patented Port Tube Profiling

Inspired by NEXO’s STM M46 cabinet, internal faces of the V-shaped port tube are profiled to ensure smooth air flow, reducing turbulence to increase low frequency efficiency and linearity at high power.

Magnetic Waveguide Flanges

System flexibility can be increased by adding magnetic flanges to the HF waveguide exit, changing the standard 80˚ acoustic coverage across the horizontal plane to 120˚. No tools are required to remove or replace the grille and flanges.
