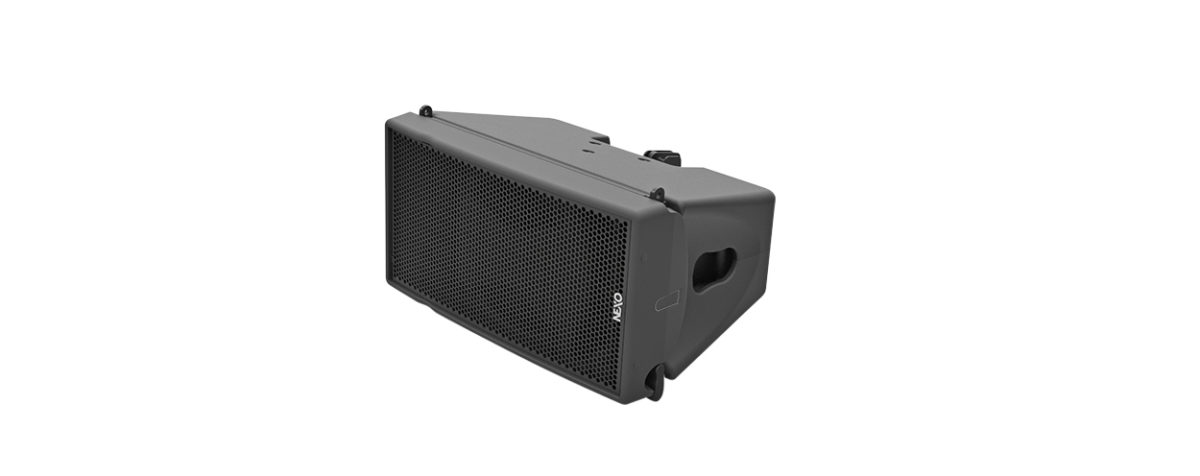

GEO M1012

Measuring 531mm wide x 288mm high x 355mm deep and weighing 21Kg, the GEO M1012 is the Touring / 12° vertical dispersion version of the GEO M10 line array element. Cabinets can be set for 80° or 120° horizontal dispersion using magnetic flanges in the waveguide, with no tools required. Cabinets are constructed from a reticulated urethane co-polymer material and and feature integral rigging with no loose parts and handles on the rear and sides. GEO M10 is available in black, white or custom RAL colours.

Key Features

  • Compact line array element that can be stacked or flown, with or without its companion sub the MSUB15
  • Integrated rigging hardware with no loose parts and AutoRigTM feature
  • Incorporates latest NEXO patented technology from the flagship STM series
  • Comprehensive range of versatile, multifunction accessories for deploying the GEO M10 in a wide variety of applications
  • Touring version with 12° vertical dispersion

Specifications

Frequency Response @-6 dB59 Hz to 20 kHz
Sensitivity 1W@1m100 dB SPL Nominal
Peak SPL@1m136 dB
Vertical Dispersion12°
Horizontal Dispersion80° / 120°
Passive Crossover Frequency1.3 kHz
Nominal Impedance8 Ohms
Recommended Power750 Watts

Features

LF Component1 x 10” 8 Ohms long excursion Neodymium driver with PDDTM
HF Component1 x 1.4” throat driver on a BEA/FEA optimized HR WavesourceTM
Height x Width x Depth288mm x 531mm x 355 mm (11.3” x 20.9” x14.0”)
Weight: Net21 kg (47 lbs)
Connectors2 x NL4, 4 poles connectors (1+/1- Through, 2+/2- GEO M10)
ConstructionLightweight Polyurethane Composite
Fittings4 x Side handles (2 vertical + 2 horizontal) + back grip
Front FinishSteel front grill + back mesh
Operating temperature range0°C - 40 °C (32° F - 104° F)
Storage temperature range-20 °C - 60 °C (-4 ° F - 140° F)
System Operation
Recommended powering solutionNXAMP4x2mk2 Powered TDcontroller: up to 3 x GEO M10 per channel
Optional powering solutionNXAMP4x1 Powered TDcontroller: 1 x GEO M10 per channel
NXAMP4x1 Powered TDcontroller (Bridged): up to 2 x GEOM10 per channel
NXAMP4x4 Powered TDcontroller: up to 4 x GEO M10 per channel
DTD TDcontroller + DTDAMP4x1.3 Power amplifier: up to 2 x GEO M10 per channel
