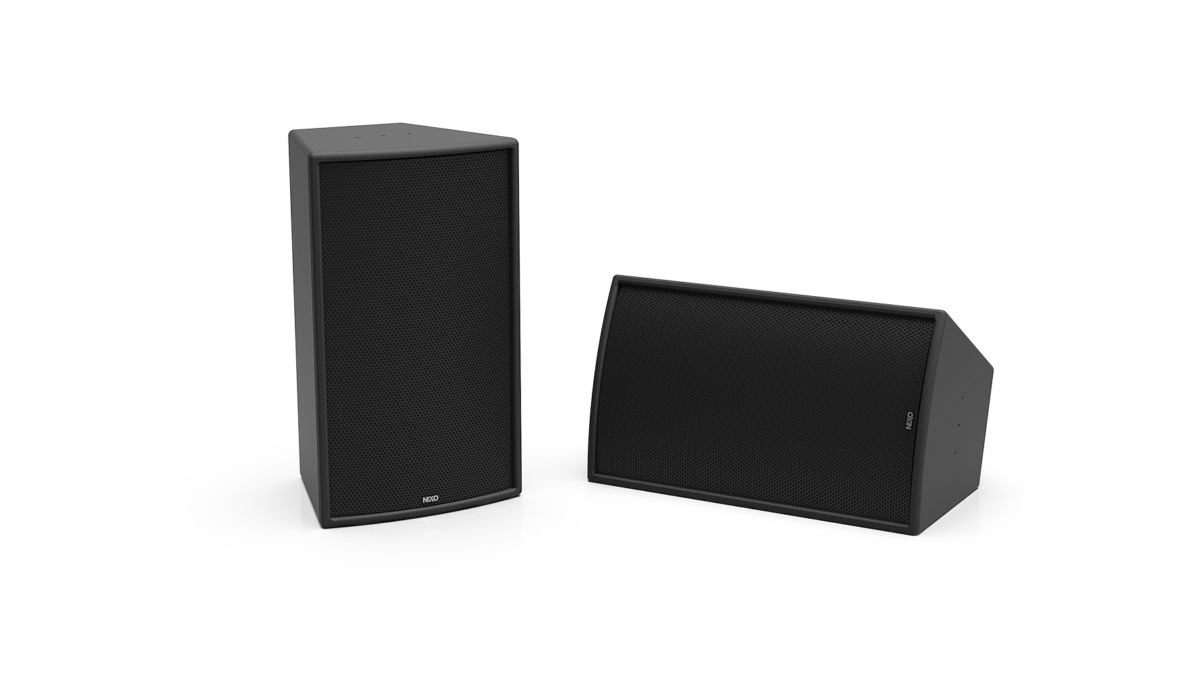

ePS10-EN54
Measuring 531mm high x 316mm wide x 285mm deep and weighing 14.8Kg, the ePS10-EN54 combines a high excursion 10-inch LF driver with a 1.4-inch diaphragm HF driver in a trapezoidal cabinet constructed in a bass-reflex design from 15mm Baltic birch plywood. Achieving a peak SPL of 130dB with a frequency range of 70Hz to 20kHz, the ePS10-EN54 features a rotatable asymmetric horn, convenient rigging points on the cabinet top, bottom and back, and two pairs of In/Out connectors on pitch screw terminal blocks with an IP cover.
Key Features
- EN54-24 certified, 2-way passive, with high excursion 10” LF and 1.4” diaphragm HF
- High power (130 dB peak) point source for outdoor fixed installations
- Lightweight (14.8 kg / 32.6 lbs) design using robust 15 mm Birch plywood enclosure
- NEXO’s Asymmetrical Dispersion Constant Directivity horn design (”PS” Horn), rotatable
- IP55 protection level and enhanced all-weather resistance
Specifications
| With NEXO Processing | |
| |
| Frequency Response @-6 dB | 70 Hz to 20 kHz |
| Sensitivity 1W@1m | 101 dB SPL Nominal |
| Peak SPL@1m | 130 dB |
| Vertical Dispersion | +25°/-30° |
| Horizontal Dispersion | 50° to 100° asymmetrical |
| Crossover Frequency | 70 Hz, 120 Hz |
| Nominal Impedance | 8 Ω |
| Recommended Power | 500 to 800 Watts / 8 Ohms |
Features
| Number of ways | 2 way passive |
| LF Component | 10” 8 Ohms long excursion neodymium driver |
| HF Component | 1.4” diaphragm 8 Ohms HF driver on an Asymmetrical Dispersion (“PS”) horn |
| Connectors | 2 pairs (In/Out) of 5 mm pitch Push-in Cage Clamp terminal blocks (+/- poles) |
| Compatible cables section | Cables from 0.2 mm² to 4 mm² (AWG 24 to 12) copper section |
| Compatible cables outside diameter | Cable with maximum outside diameter of 11 mm |
| Rigging points | 3x M6 - 70 mm pitch rigging points (back) + 2x extra M6 and 1x M10 (top/bot) |
| Material | 15 mm thick birch plywood body with polyurethane coataing and galvanized grill |
| Finish | Black structural paint (RAL9005 or Custom RAL upon request) |
| Front Finish | Galvanized grill in front of UV & Fire resistant acoustic fabric |
| Height x Width x Depth | 531mm x 316mm x 285mm (20.9” x 12.4” x 11.2”) |
| Weight: Net | 14.8 kg (32.6 lbs) |
| Operating temperature range | 0°C - 40 °C (32° F - 104° F) |
| Storage temperature range | -20 °C - 60 °C (-4 ° F - 140° F) |
| IP Rating | IP55 |
| |
| System Operation | |
| Recommended powering solution | NXAMP4x1mk2 Powered TDcontroller: 1 x ePS10 per channel |
| Optional powering solution | DTDcontroller + DTDAMP4x1.3 : Up to 2 x ePS10 per channel |
| NXAMP4x2mk2 Powered TDcontroller: Up to 4 x ePS10 per channel |
| NXAMP4x4mk2 Powered TDcontroller: Up to 4 x ePS10 per channel |
| |
| EN54-24 System Specifications | |
| Nominal Impedance | 4 Ohms |
| Nominal Continuous Voltage | 32 Vrms |
| Nominal Continuous Power | 250 Watts |
| Sensitivity 1W@4m | 77 dB SPL |
| Max Continous Sound Pressure @4m | 101 dB SPL |
