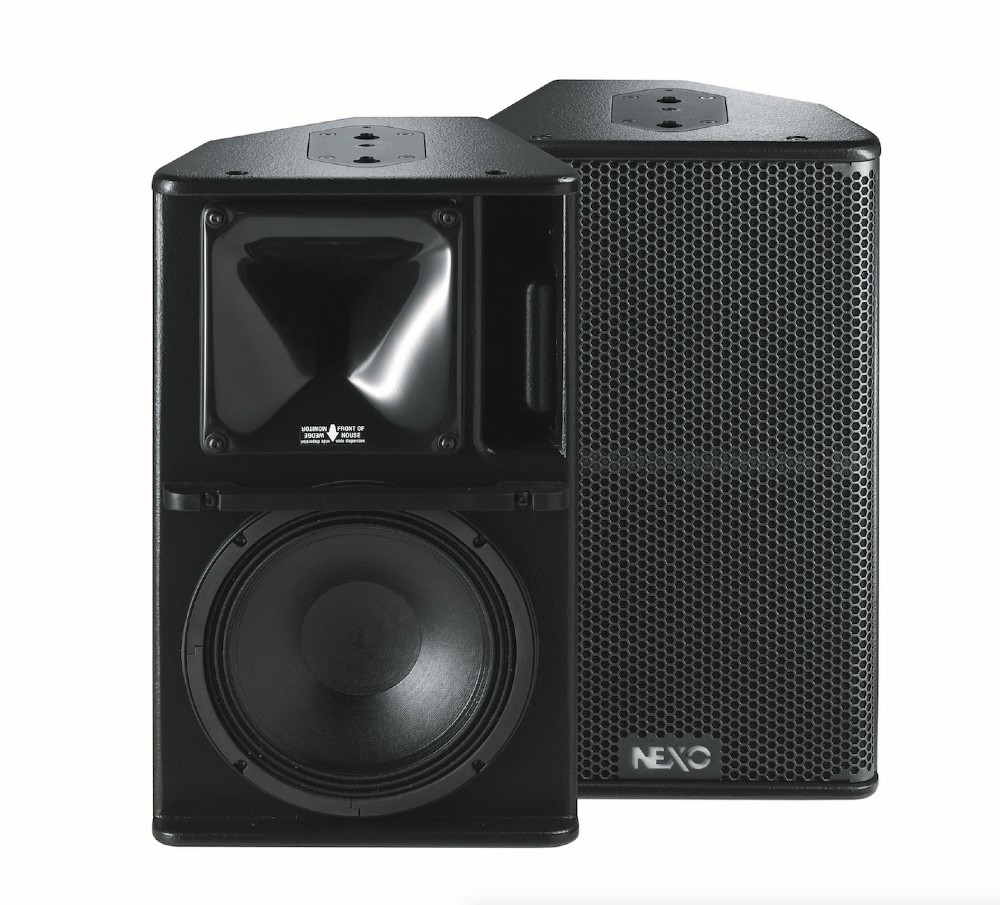

PS10-R2
A high power system capable of producing 132 dB Peak SPL, the new PS10-R2 Loudspeaker can be safely driven with up to 1250 Watts of amplifier power. Controlled by the new DTD Controller, the PS10-R2 achieves high SPLs and wide bandwidth performance, despite being only half the weight and volume of common trapezoidal loudspeaker systems.
Key Features
- High-power system (132dB Peak SPL@1m) with 10in LF and 1in HF drivers
- Rotatable asymmetrical horn and unique cabinet architecture ensure versatility
- User-adaptable for both PA and stage monitoring applications
- Two-way passive 8Ω design uses a single amplifier channel for simpler installation and lower cost
- Sophisticated control electronics ensure reliable, linear operation
- Supported with a full range of mounting and flying accessories
Specifications
| Frequency Response [a] | 65 Hz - 20 kHz ±3dB |
| Usable Range @-6dB [a] | 58 Hz - 21 kHz |
| Sensitivity 1W @ 1m [b] | 99 dB SPL Nominal – 97 dB SPL Wideband |
| Nominal Peak SPL @ 1m [b] | 129 to 132 dB Peak |
| HF Dispersion [c] | 50° to 100° Hor. x 55° Vert. |
| Rotatable Horn | 4 positions |
| Directivity Q & DI [c] | Q : 16 Nominal DI : 12 dB Nominal ( f > 3 kHz ) |
| Crossover Frequencies | 2 kHz Passive |
| Nominal Impedance | 8Ω |
| Recommended Amplifiers | 500 to 1250 W / 8 Ω |
Features
| Components | 1 x 10” (25cm) Neodymium 8Ω driver |
| HF 1 x 1” throat driver + Low Distortion Constant Directivity | |
| Asymmetrical Dispersion Horn | |
| Height x Width x Depth | 515mm x 316mm x 277 mm |
| (20.28” x 12.44” x 10.91”) | |
| Weight | 14 kg (31 lbs |
| Connectors | 2 x NL4MP Speakon 4 pole |
| Construction | Baltic Birch Ply finished with textured black coating |
| Fittings | 2 Metal recessed pockets |
| Front finish | Moulded dark grey metal grill |
| Flying Points | One plate connecting with external accessories |
| Stand fittings | Built in Steel Stand Fitting, (35mm 1 3/8”) |
