eLS400

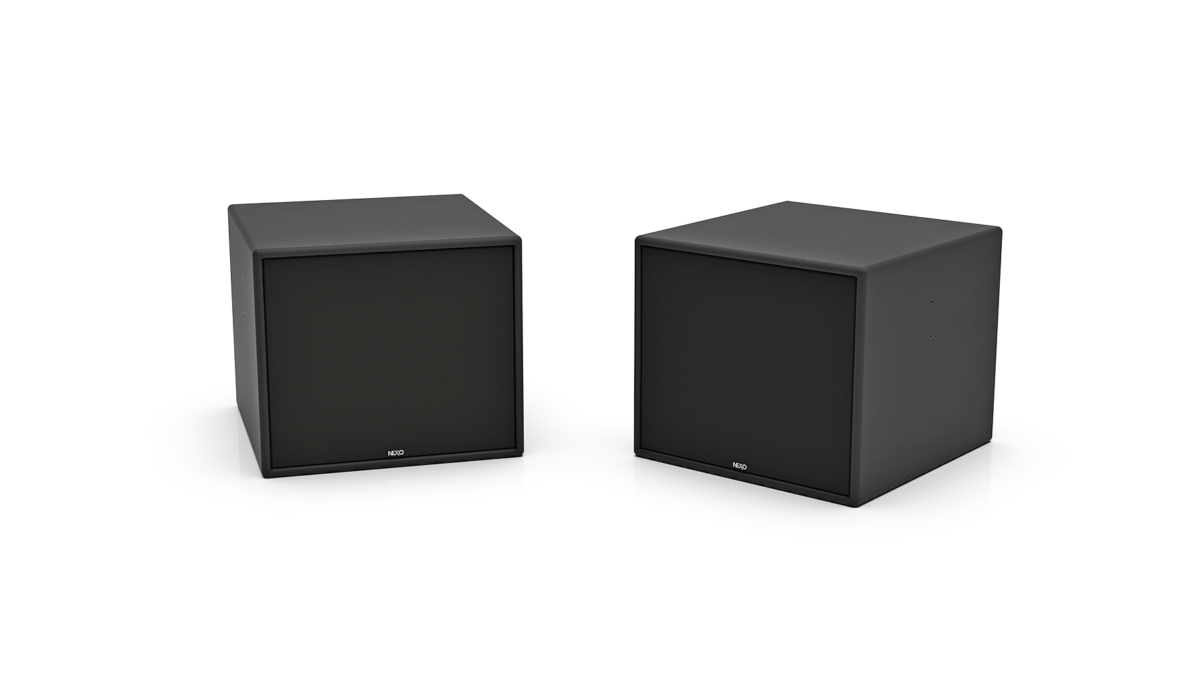

Measuring 365mm high x 423mm wide x 450mm deep and weighing 14.5Kg, the eLS400 sub uses a high excursion 12-inch Neodymium driver in a cabinet constructed in a bass-reflex design. Constructed from 15mm baltic birch plywood, the cabinet is protected by a strong polyurethane based coating and the Magnelis® front grille is covered by a black UV and fire resistant cloth. Achieving a peak SPL of 130dB with a frequency range extending down to 45Hz, the eLS400 features convenient rigging points and two pairs of In/Out connectors on pitch screw terminal blocks with an IP cover.
Key Features
- Installation sub with high-excursion 12-inch woofer
- Ideal companion to ePS6 and ePS8 installation loudspeakers
- Compact design that can be stacked or flown with ePS6 or ePS8 companion main speaker
- Discrete, easy to integrate design
- Lightweight (14.5kg / 32lbs) using neodymium driver and birch plywood enclosure
- Solid construction using 15mm birch plywood enclosure
- IP55 protection level
- Comprehensive range of accessories for deploying the eLS400 in a wide variety of applications
Specifications
| Frequency Response @-6 dB | 45 Hz to 150 Hz |
| Sensitivity 1W@1m | 102 dB SPL Nominal |
| Peak SPL@1m | 130 dB |
| Crossover Frequency | 45-85 Hz, 45-120 Hz,
45-150 Hz |
| Nominal Impedance | 6 Ω |
| Recommended Power | 450 to 700 Watts / 6 Ohms
(requires a 700 to 1000 Watts
/ 4 Ohms amplifier) |
Features
| LF Component | 1 x Neodymium 12" 6 Ohms
long excursion |
| Connectors | 2 pairs (In/Out) of 7.62 mm pitch screw terminal blocks (+/-
poles) |
| Compatible cables section | Cables from 1.5 mm² to 3.3 mm² (AWG 12 to 15) copper section |
| Compatible cables outside diameter | Cable with maximum outside diameter of 11 mm |
| Rigging points | 4 x pairs of M10 rigging points (two on each side) |
| Material | 15 mm thick birch plywood body and Magnelis® grille |
| Finish | Black structural paint (RAL9005 or Custom RAL upon request) |
| Front Finish | UV & Fire resistant acoustic fabric |
| Height x Width x Depth | 365mm x 423mm x 450mm
(14.4" x 16.7" x 17.7") |
| Weight: Net | 14.5 kg (32 lbs) |
| Operating temperature range | 0°C - 40 °C (32° F - 104° F) |
| Storage temperature range | -20 °C - 60 °C (-4 ° F - 140° F) |
| IP Rating | IP55 |
| |
| System Operation | |
| Recommended powering solution | NXAMP4x1mk2 Powered
TDcontroller: up to 2 x eLS400
per channel |
| Optional powering solution | DTDcontroller +
DTDAMP4x0.7 : 1 x eLS400
per channel |
| DTDcontroller +
DTDAMP4x1.3 : 1 x eLS400
per channel |
| NXAMP4x2mk2 Powered
TDcontroller: up to 3 x eLS400
per channel |
| NXAMP4x4mk2 Powered
TDcontroller: up to 3 x eLS400
per channel |
