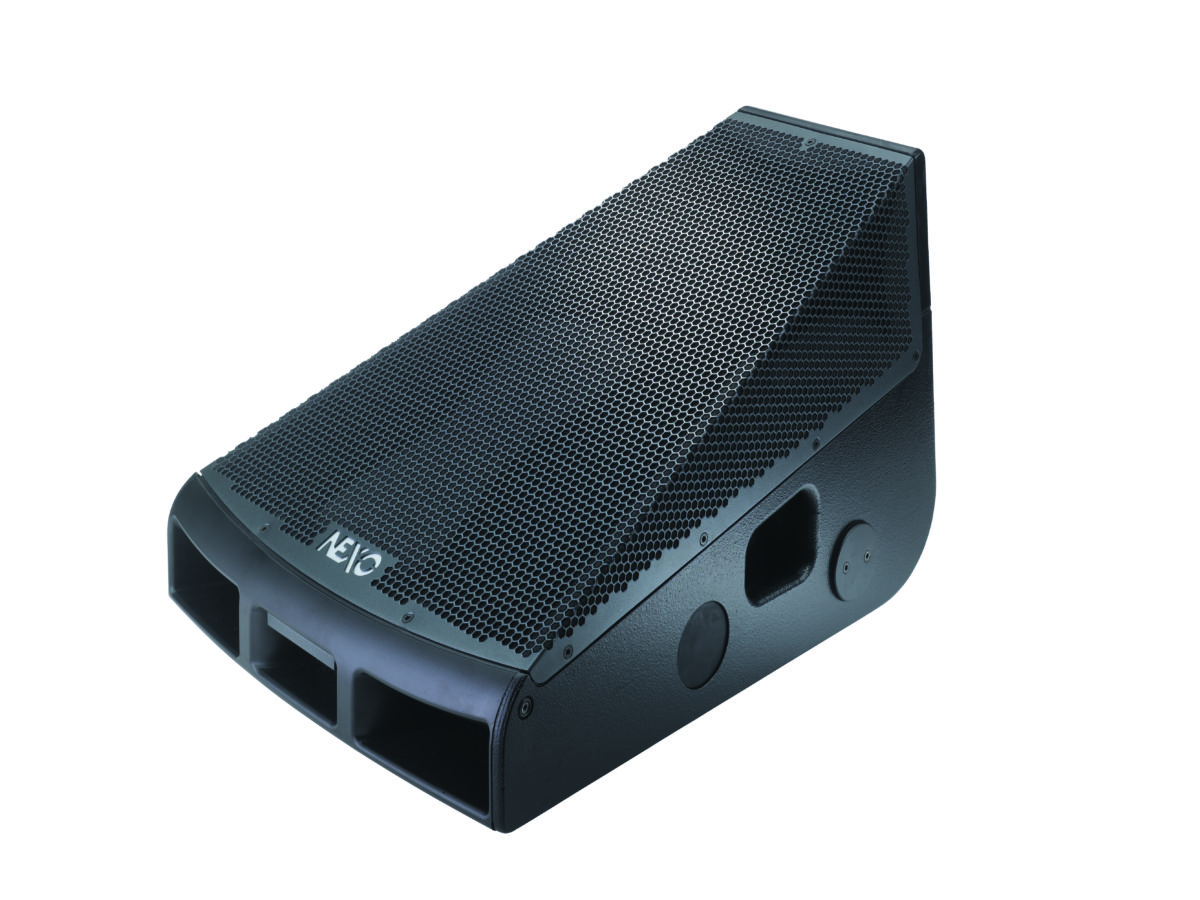

45N12
45N12 is a flexible, one box solution for any stage monitoring application , providing rental companies with a ‘one box’ solution for all their stage monitoring needs. Delivering consistent SPL and frequency response within a tightly- focussed area, cabinets can even be locked using an ingenious magnetic locking system to create monitor arrays where more SPL and wider coverage are required.
Key Features
- World’s first line monitor
- Can be joined together into arrays to provide a scalable solution for wider coverage and higher SPLs
- Very high headroom before feedback
- Focusses coverage only where needed for lower acoustic power on stage
- Discreet, low profile design
- Ingenious magnetic locking system
- Non-slip base with skid system and ergonomic handle for easy repositioning on stage
Specifications
| Frequency Response [a] | 55Hz - 19kHz ±3dB |
| Usable Range @-6dB [a] | 50Hz - 20kHz |
| Sensitivity 1W @ 1m [b] | 106dB SPL Nominal / 104dB SPL Wideband |
| Nominal Peak SPL @ 1m [b] | 1 unit: 137 to 140dB Peak / 2 units: 140 to 143dB Peak |
| HF Dispersion [c] | 30° Horizontal - Scalable 30° steps when arrayed |
| 22.5° Diagonal (Coupling Plane) - Scalable 22.5° steps when arrayed | |
| 60° Vertical (Asymmetrical -45° / +15°) | |
| Crossover Frequencies | LF-HF: 1kHz Active or Passive (internally configurable) |
| Nominal Impedance | Active LF 8Ω, HF 16Ω. Passive 8Ω |
| Recommended Amplifiers | Active LF 1000 to 1500 W 8Ω / HF 250 to 500 W 16Ω |
| Passive 1200 to 2000 W 8Ω |
Features
| Components | LF 1 x 12" (30 cm) high excursion Neodymium 8Ω driver |
| HF 1 x 3" voice coil, 1.4" throat Neodymium 16Ω compression | |
| driver on a 22.5° hyperboloid reflective wavesource | |
| Height x Width x Depth | 392 x 492 x 576 mm (15.43" x 19.37" x 22.67") |
| Net Weight | 24 kg (53 lbs) |
| Connectors | 2 x NL4MP Speakon 4 pole |
| Construction | Main structure: Baltic Birch Ply finished with structured black coating |
| Rear lower and bottom section: Steel with dark grey coating | |
| Front vents and rear upper section: Injected polyurethane front vents, black coating | |
| Fittings | 4 handles (2 side metal recessed, 2 front and rear moulded) |
| Front Finish | Perforated dark grey metal grille |
| Locking Elements | Integrated magnets for mechanical locking |
