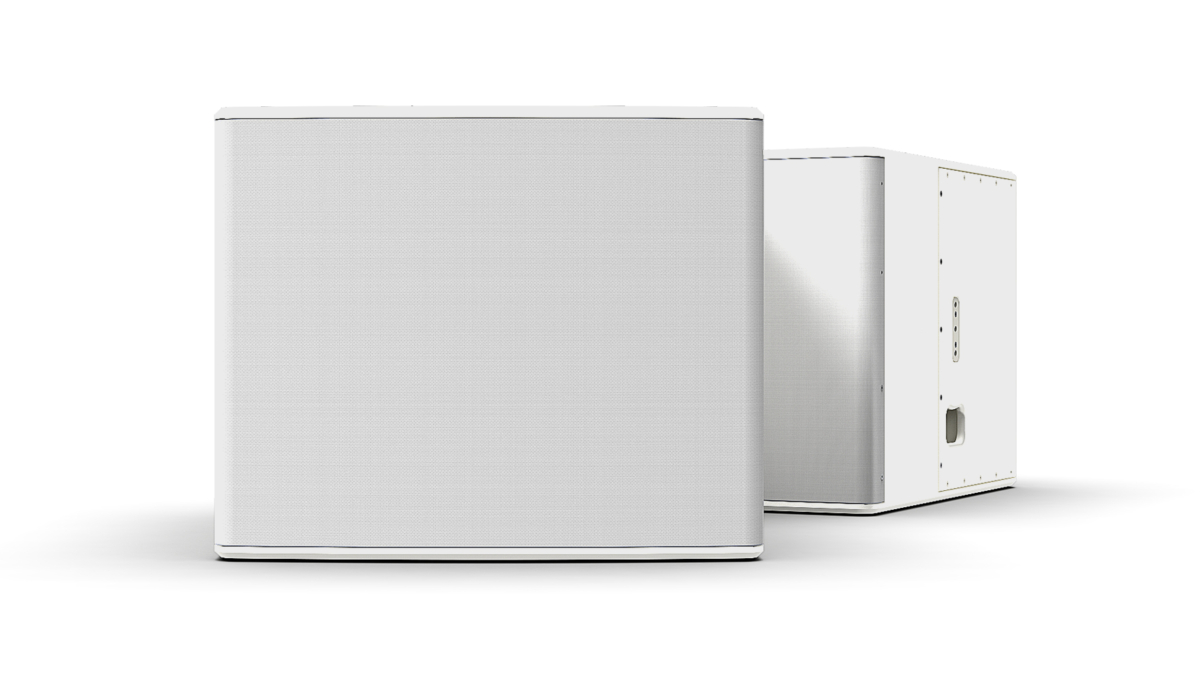

L18-I
Measuring 680mm wide x 559mm high x 775mm deep, the installation version of the L18 sub employs a 18″ long excursion driver in Baltic birch / poplar plywood cabinet with a fabric covered grille and threaded inserts for mounting accessories, and quick-connect push connector. With a frequency range of 32Hz-120Hz, and 140dB Peak SPL, the L18-I is perfect for extending the low frequency response of P+ Series installations.
Key Features
- Install version of L18 sub
- Fabric grille cover and quick-connect push connector
- Extends LF performance to 32Hz
- 140dB peak SPL
- Threaded inserts on the back and on both sides for connection of mounting accessories
- Available in black, white and custom RAL colours
Specifications
| Frequency Response (+6 dB) | 32 Hz - 120 Hz |
| Peak SPL Level (1m) | 140 dB Peak |
| Recommended Amplifiers | 1550 to 2450 Watts / 4Ω |
| Crossover Frequency | 60 Hz, 85 Hz, 120 Hz |
| Nominal Impedance | 4Ω |
Features
| Components | 1x 18" – 4 ohms – Long excursion – Neodymium driver |
| Connectors | Quick-connect push connector |
| Rigging Points | 1 x Universal accessory fit on each side + 1 x M20 thread for Pole Stand on top |
| Material | Custom made bent plywood of Baltic birch and poplar |
| Finish | Black or white structural paint |
| Front Finish | Fabric covered front grille |
| Weight | 50 kg |
| Height x Width x Depth | 559mm x 680mm x 775 mm (22.0” x 26.8” x 30.5”) |
| Operating Temperature Range | 0°C - 40°C (32°F - 104°F) |
| Storage Temperature Range | 20°C - 60°C (-4°F - 140°F) |
| System Operation | |
| Recommended Powering Solution | NXAMP4X2MK2: 1 x L18 per channel |
| Optional Powering Solutions | NXAMP4X1MK2 (Bridged): 1 x L18 per channel |
| NXAMP4X4MK2: Up to 2 x L18 per channel |
