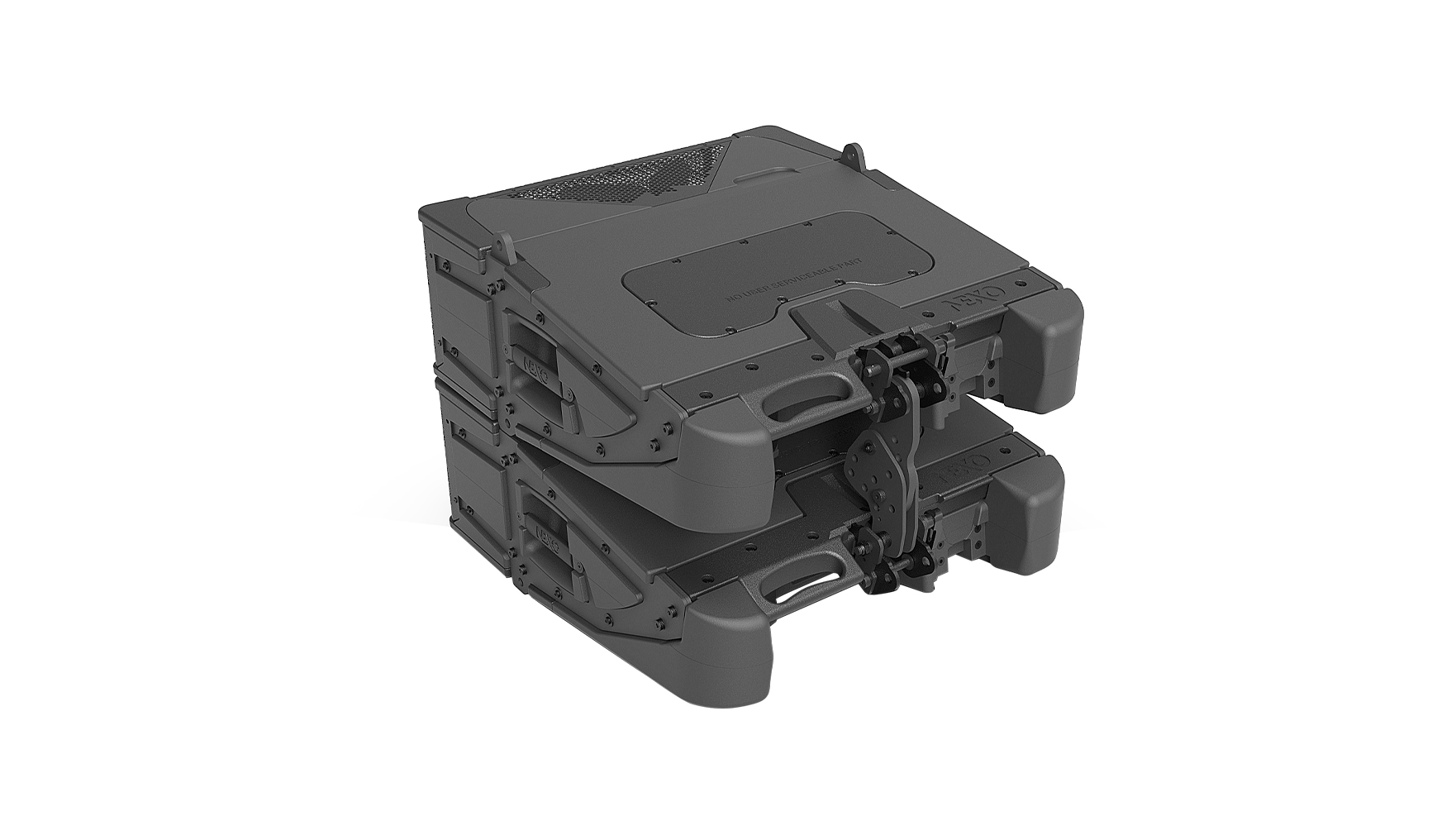

M28-I
2 enceintes line array compactes de 8 pouces fournissant une dispersion horizontale entre 90° et 120° et un angle d’écartement entre les modules de 0° à 15°. La version fixe du M28 est dotée de Compass RigTM, permettant de prédéfinir les valeurs d’angles de l’inter-caisson.
Caractéristiques Principales
- Version fixe du M28
- 2 haut-parleurs de graves de 8 pouces
- 2 moteurs d’aigus à compression
- Pression acoustique maximale 141 dB
- Réponse en fréquence : de 65 Hz à 19 kHz
- H : 234 mm/L : 575 mm/P : 653 mm
Spécifications
| Frequency Response | 65Hz – 19kHz ±3dB |
| Usable Range @-6dB | 60Hz – 20kHz |
| Sensitvity 1W@1m | 106dB SPL Nominal (120° horizontal coverage) 107dB SPL Nominal (90° horizontal coverage) |
| Peak SPL@1m | 140dB Peak (120° horizontal coverage) 141dB Peak (90° horizontal coverage) |
| Dispersion | Configurable 90°-120° Horizontal x 0-15° vertical |
| Available Crossover Frequencies | 900Hz (Active) |
| Nominal Impedance | LF: 8 Ω (6 Ω min) - HF: 8 Ω (6 Ω min) |
| Amplified Controller | NXAMP4x4 - 3xSTM M28 in parallel on 2 NXAMP4x4 channels - 2x4000W/2Ω |
Caractéristiques
| Components | LF: 2 x 8" (20cm) high excursion 16 Ω Neodymium drivers |
| HF: 2 x 2.5" voice coil, 1.4" throat Neodymium 16 Ω drivers, Ketone Polymer diaphragm |
| Height x Width x Depth | 234 x 575 x 653 mm – 9.2" x 22.6" x 25.7" |
| Construction | PU Composite Low Density – Polyurethane water based black coating |
| Front Finish | Perforated Dark Grey Metal Grille |
| Rigging | Integral 3 points flying system. Intercabinet angle adjustments from 0.2° to 15° in logarithmic steps. |
| System Operation | |
| Electronic Controller | The NEXO NXAMP4x4 presets are precisely matched to the STM Series cabinets and include sophisticated protection algorithms. Using STM Series cabinets without a properly connected NEXO NXAMP4x4 will result in poor sound quality and can damage components. |
| |
| |
| |
