Each week, Overlake Christian Church (OCC) in Redmond WA is filled with a variety of events as well as Christian services. The 5,000-seat sanctuary has been in operation for close to 20 years with an average weekly attendance of 3,500.
The modular NEXO STM system replaces equipment that was installed in the church when it originally opened. The system design and installation was performed by Morgan Sound (Lynnwood, WA) following a comprehensive study of the acoustical space and available rigging points.
The worship at OCC is contemporary, with a typical setup consisting of 7-8 musicians and 4-5 additional vocalists. Because the space is large, it is also used for regional large-scale Christian concerts and conferences. “The OCC technical staff is highly experienced in dealing with tours,” states Stephen Weeks, A/V Consultant, Morgan Sound, Inc. “In the past, when a tour came through, speaker systems and production would be brought in from outside, necessitating a substantial investment of time and resources to fly the PA system. The STM installation will provide a top-of-the-line tour grade audio system for the church, visiting production tours. and conferences.”

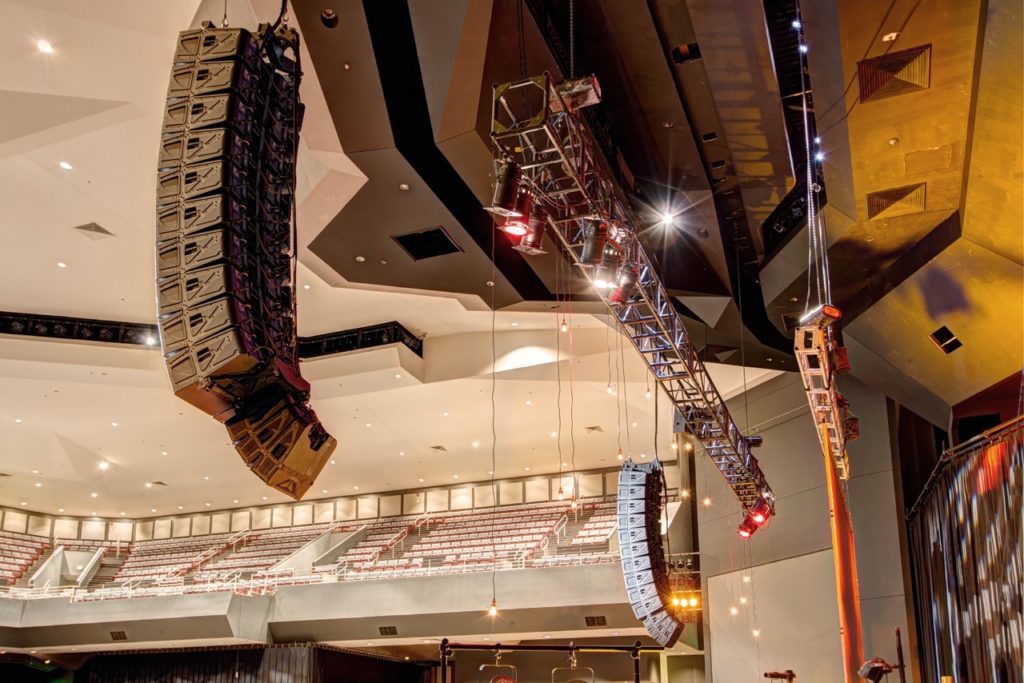

The main STM system consists of 10x NEXO M46 mid-high modules coupled with 10x B112 low-frequency modules per cluster in a Left+Right configuration. 3x NEXO M28 down fill speakers per side are attached under the main arrays. 2x NEXO GEO S1230 speaker clusters each with 3 modules were installed for balcony outfill. 12x NEXO S118 subwoofers are flown in the centre of the church in cardioid mode to facilitate even subwoofer coverage throughout the whole space. The amplifier complement includes 13x NEXO NXAMP 4×4 and 2x NXAMP 4×1 amplifiers for a total of 212,800 watts of power. All the amplifiers are connected via Dante for maximum flexibility.
“The NEXO STM really sounds extraordinary,” says Weeks. “It is very linear in the vertical and horizontal planes, and this translates to an excellent experience, no matter where you are in the room. I would especially highlight the high frequency detail; even 125′ away, you can hear every nuance. The new rigging system is very intuitive and made the speaker hang and angle adjustment very easy!”
Morgan Sound also installed a Yamaha CL5 Digital Audio console at front of house and a second on stage in the monitor position. Two Rio3224-D input/output boxes are used as the snake system. With Dante networking, the CLs are routinely used for multi-track recording and virtual sound check. Dante also connects to a DM1000 with a Dante MY card in the broadcast booth for additional recording capability. “Dante is really an amazing tool and OCC is taking full advantage of it,” adds Weeks. A Yamaha DME64 Digital Mix Engine was installed to provide signal distribution and EQ. “Yamaha and NEXO’s design and technical expertise for this project was really stellar. It illustrates how good manufacturer and A/V contractor relationships can produce fantastic results!”
Charlie Morgan, President of Morgan Sound Inc. adds, “The support from Yamaha and NEXO was extraordinary. Not only was product staged for an on-demand delivery date, we also benefitted from the expertise of the NEXO training and technical staff during the final phases of commissioning. Our partnership with OCC and the NEXO staff at Yamaha ensured a compete and successful installation in the narrow time slot allotted.”
“We are extremely pleased with the stunning performance of the NEXO STM system,” states Marc Breda, Technical Arts Director at the church. “It has surpassed our goal of making a 5000-seat room feel intimate for speaking and worship. NEXO, Yamaha, and Morgan Sound have provided remarkable support from the initial design to completion of the final installation.”
